Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Diesel Generator Set
Created with Pixso. 160kw 200kva Weichai Power Generator 180kw 225kva 200kw 312.5kva 250kva Diesel Generator
  • Name
  • Name
  • Name
  • Name
  • Name

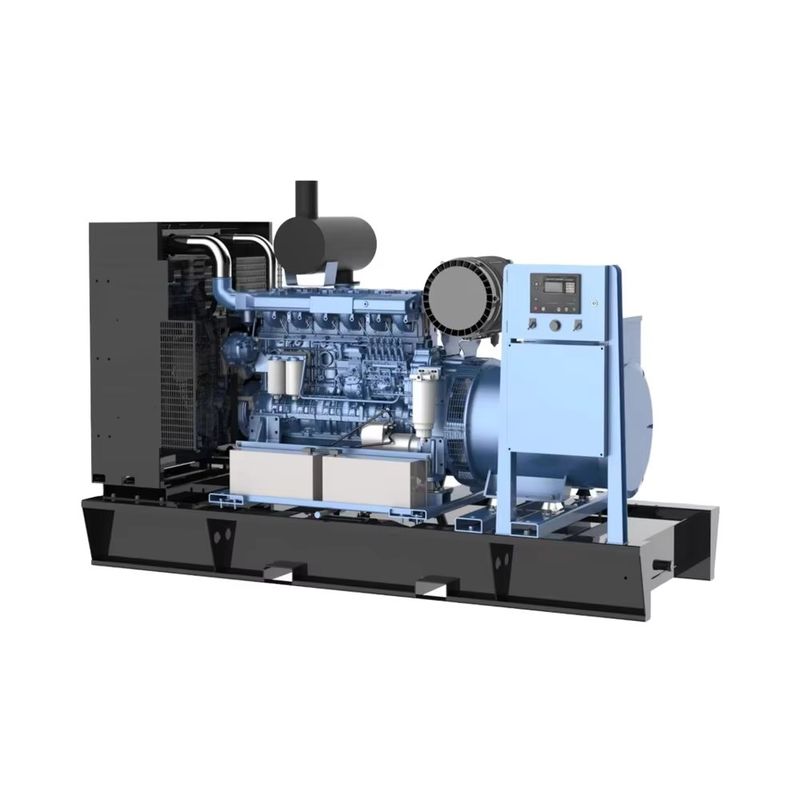

160kw 200kva Weichai Power Generator 180kw 225kva 200kw 312.5kva 250kva Diesel Generator

Brand Name: JIWEI
Model Number: WP10D
MOQ: 1
Price: Negotiabce
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Rated Voltage:
400V , 230V
Rated Current:
288A-450A
Speed:
1500RPM, 1800RPM
Frequency:
50/60hz
Starting System:
24V DC Electric Start
Type:

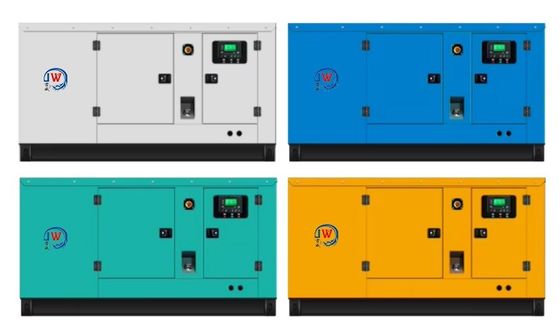

Container Type, Open Frame, Mobile Type
Cooling System Type:
Water Cooling System
Warranty:
Other
Rated Power:
60kw 200kva 180kw 225kva 200kw 250kva 250kw 312.5kva
Engine:
WP10D
Product Name:
160kw 200kva 180kw 225kva 200kw 250kva 250kw 312.5kva Weichai Diesel Generator Set
Color:
Customizable
Highlight:

160kw 200kva weichai power generator

,

288A 250kva diesel generator

,

450A diesel backup generator

Product Description
160kw 200kva 180kw 225kva 200kw 250kva 250kw 312.5kva Weichai Generator Diesel Generator Set
Overview
Product characteristics
  • Strong power: As a well-known domestic diesel engine manufacturer, Weichai's WP4D66E200 diesel engine uses advanced combustion system and fuel injection technology to provide powerful power for the generator set.
  • High efficiency and energy saving: with excellent energy conversion efficiency, it can maintain good performance under high load working conditions, and can reduce fuel consumption and save energy costs compared with traditional generator sets.
  • Stable and reliable: The use of advanced control system and voltage regulation technology, constant output voltage, small fluctuations, for home, commercial, industrial and other fields of electrical equipment stable power supply, reduce the failure caused by power instability.

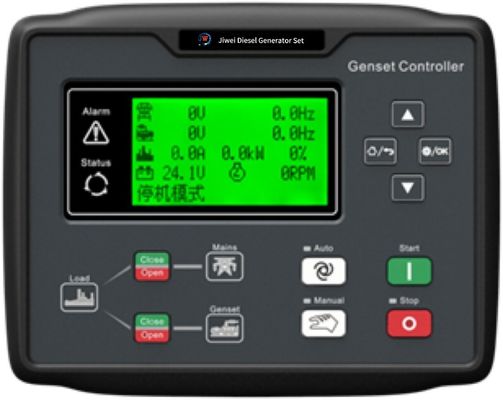

  • Convenient operation and maintenance: reasonable design, equipped with advanced remote control start and stop system, but also has a good fault self-diagnosis function, can timely alarm and locate the fault location, easy for users to carry out maintenance.
  • Perfect safety protection: equipped with multiple protection mechanisms, including overvoltage protection, undervoltage protection, overload protection, short circuit protection, etc., can automatically stop in abnormal working conditions to protect the safety of equipment and personnel.
Application field
  • Industrial field: It can be used for emergency power supply of factory production equipment to avoid disruption of production line due to power outage and reduce economic losses.
  • Commercial field: such as shopping malls, hotels, office buildings and other places, when the power grid power failure, for lighting, elevators, air conditioning and other equipment power supply, maintain normal business operations.
  • Medical field: Some important medical equipment in the hospital, such as operating room equipment and intensive care unit equipment, need continuous and stable power supply, 60kW Weichai diesel generator set can be used as backup power to ensure the normal medical work.
  • Data center: Provide power support for servers and network equipment in the data center to prevent data loss and service interruption.
Land Based Genset-JW-WP200
Gen-set speciications
Model JW-WPG206*8
Standby Rating kVAMkWe 206/165
Prime Rating kVAkWe 187.5/150
Voltage V 400
Frequency Hz 50
Power Factor 0.8(lagging)
No.of Phases 3
Fuel consumption@25%/50%/75%(Lh) 12.36/21.13/29.57
Fuel consumption@100%/110%(Lh) 38.79/42.50
Sound@1m(dB · (A)) Open≤105;Silence≤85
Ambient temp (C) -10~45
Gen-set regulation cass ISO8528-5 G2
Steady-state voltage deviation ≤±2.5%
Transient voltage deviation
(100%sudden power decrease/ncrease)		 ≤+25%;≤-20%
Steady-state frequency band ≤1.5%
Transient frequency deviation from rated frequency
(100%sudden power decrease/increase)		 s+12%;≤10%
Standard Features
  • ◆ Electronic governor
  • ◆DC24 Electricstarter
  • JW-WHC6120NC
  • ◆Closed water-cooled
  • ◆ IP23
  • H type insulation
  • ◆Air filter
  • ◆ Muffler
  • ◆Circuit Breaker
  • ◆Starting batteries
  • ◆ with connective wires
  • ◆ Radiator
  • ◆Oil Drain Valve
  • ◆Forklift Groove
  • Shock Absorber
  • ◆Color
  • Weichai blue(B,F)/beige canopy and black chassis(L)
  • ◆Packaging
  • Wound film packing
Options
  • OVoltage380V/415V
  • ◆Voltage 440V/480V
  • ◇Single Voltage 220V/230V
  • OAutomatic Transfer Switch
  • Automatic Parallel system
  • OPMG
  • ◇Engine Heater(water)
  • ◇Engine Heater(air inlet)
  • OAlternator heater
For detailed parameters, please consult me.

160kw 200kva Weichai Power Generator 180kw 225kva 200kw 312.5kva 250kva Diesel Generator 0

160kw 200kva Weichai Power Generator 180kw 225kva 200kw 312.5kva 250kva Diesel Generator 1

160kw 200kva Weichai Power Generator 180kw 225kva 200kw 312.5kva 250kva Diesel Generator 2

160kw 200kva Weichai Power Generator 180kw 225kva 200kw 312.5kva 250kva Diesel Generator 3

160kw 200kva Weichai Power Generator 180kw 225kva 200kw 312.5kva 250kva Diesel Generator 4

Our OEM Partners

are from different brands. With our customized solutions consistently delivering satisfaction ,we have won an esteemed reputation.

FAQ
  1. Q: What is your MOQ of this item?
    A:1 Sets.
  2. Q: What is the lead time?
    A:7 working days after received the 30%T/T deposit.
  3. Q: Is it all right to make customer's own brand name?
    A:We can be your OEM manufacture with your authorization of brand.
  4. Q: Where is your Loading Port?
    A:Shanghai or others.
  5. Q: What are your payment terms?
    A:30% TT as deposit,70% TT before Shipment.
  6. Q: What is your company's available production capacity?
    A:100 Sets per month.
  7. Q:What's the warranty time of diesel generators?
    A:12 months or 1000 working hours, whichever comes first.
Why choose Jiwei to buy a generator set:
  1. First, environmental protection and fuel saving: The advantages of gasoline generator include: optimized performance, ‌ flexible control, ‌ reduce NOx emission, ‌ high precision control, low vibration, low noise, low maintenance cost; ‌
  2. Second,Delivery Guarantee: 1.fast delivery time: 1-5 days after receiving the deposit, except for special models; 2.Jiwei Company has been established for 20 years, with rich pre-sales and after-sales service capabilities, strong supply capabilities, stable supplier resources and rich logistics resources;
  3. Third, strict quality inspection and testing procedures: 1.each generator set has to go through a comprehensive test program, including 50% load, 75% load, 100% load, 110% load and all control and alarm, safety shutdown function inspection and certification.
  4. Fourth, service guarantee 1.provide free technical support, drawing design; 2.warranty time :2 years or 2000 hours to the first arrival (delivery starts to calculate the time); 3.service response time: within 30 minutes (telephone response); 4.spare parts supply: common repair, maintenance spare parts supply (shipped in China); 5.warranty address: global warranty; Fifth,Customized Services: can be more customized products and LOGO according to your needs;
  5. Sixth,Confidentiality we can sign quality assurance and confidentiality agreements with you, so that our cooperation is more stable;
