| Brand Name: | JIWEI |
| Model Number: | WP4.1 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |

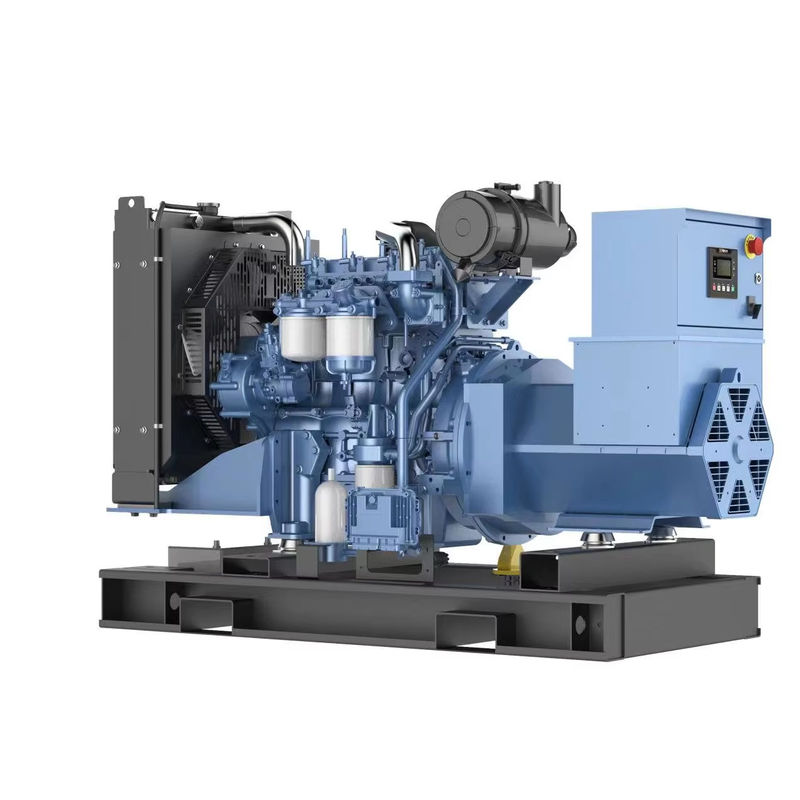

| Land Based Genset-JW-WP66 | ||||||
| Gen-set specifications | ||||||
| Model | JW-WP66 | |||||
| Standby Rating kVAkWe | 68.5/55 | |||||
| Prime Rating kVAkWe | 62.5/50 | |||||
| Voltage V | 400/230 | |||||
| Frequency Hz | 50 | |||||
| Power Factor | 0.8(lagging) | |||||
| No.of Phases | 3 | |||||
| Fuel consumption@25%/50%/75%(Lh) | 4.34/7.12/9.46 | |||||
| Fuel consumption@100%/110%(Lh) | 13/14.13 | |||||
| Sound@1m(dB · (A)) | Open≤105 dB(A);Silence≤85 dB(A) | |||||
| Ambient temp(℃) | -10~45 | |||||
| Gen-set regulation class | ISO8528-5 G2 | |||||
| Steady-state voltage deviation | ≤±2.5%;≤±5% | |||||
| Transient voltage deviation (100%sudden power decrease/increase) | +25%;-20% | |||||
| Steady-state frequency band | ≤1.5% | |||||
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) | +12%;-10% | |||||

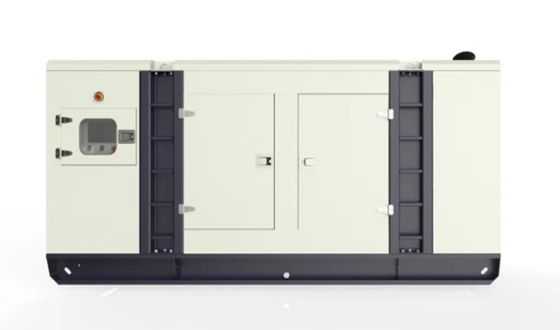

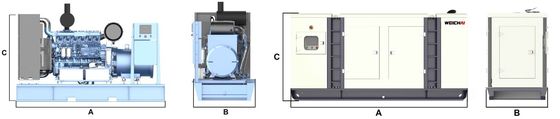

| Typical Enclosed Genset Dimensions | ||||||
| Genset Model | Prime Rating (kVA) | Length A(mm) | Width B(mm) | Height C(mm) | Wet Weight* (kg) | Standard Fuel tank Capacity (L) |
|---|---|---|---|---|---|---|
| JW-WP66B1 | 50 | 1930 | 860 | 1218 | 925 | / |
| JW-WP66F1 | 50 | 1930 | 860 | 1218 | 1030 | 105 |
| JW-WP66L1 | 50 | 2880 | 1050 | 1600 | 1420 | 180 |
:Include coolant and oil
We have cooperation with worldwide famous brands. For more specification,please contact us.
are from different brands. With our customized solutions consistently delivering satisfaction, we have won an esteemed reputation.
Q: What is your MOQ of this item?
A: 1 Sets.
Q: What is the lead time?
A: 7 working days after received the 30%T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before Shipment.
Q: What is your company's available production capacity?
A: 100 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
