| Brand Name: | JIWEI |
| Model Number: | WP2.3 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |

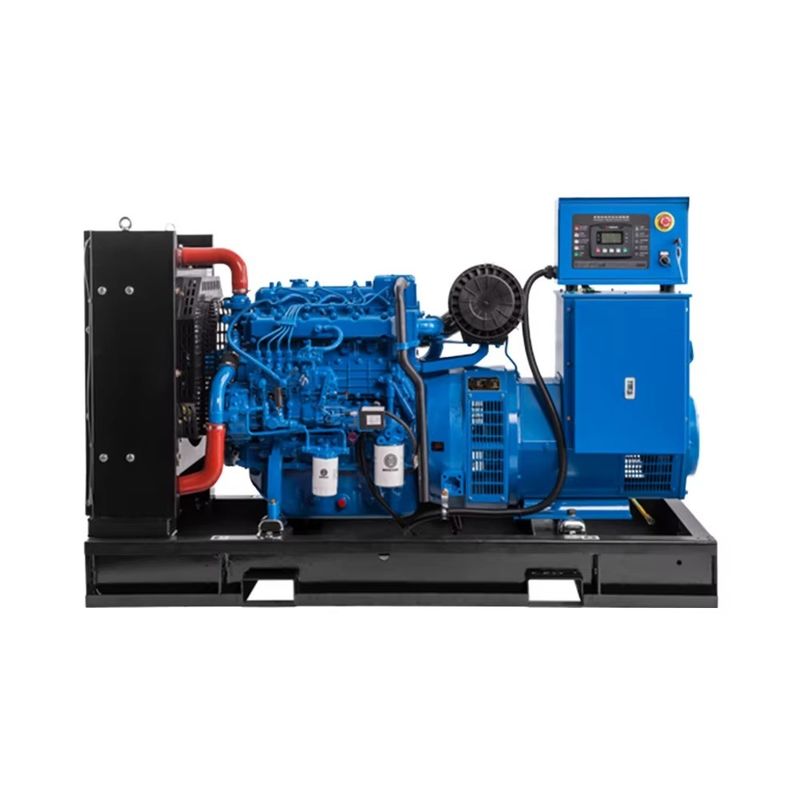

18kw 22kva 26kw 32kva 30kw 38kva 36kw 45kva Weichai Generator Diesel Generator Set
Application field
● Industrial field: It can be used as a backup power supply for factories to ensure the normal operation of production equipment when the mains power is cut off, such as textile mills and machinery factories.
● Commercial field: Used in shopping malls, hotels, office buildings and other places to ensure the normal use of lighting, elevators, air conditioning and other equipment in the event of power failure.
● Medical field: The important equipment of the hospital, such as the operating room, the ICU, the emergency equipment, etc., needs a reliable power supply, and the 18kw Weichai diesel generator set can be used as a backup power supply to ensure the normal medical work.
● Communication field: Provide backup power for communication base stations to ensure the stable operation of communication networks and prevent communication interruption due to power outages.
● Agriculture: In rural areas, it can be used for irrigation, agricultural product processing and other places to ensure the smooth progress of agricultural production.
| Land Based Genset-JW-WP25 | |||||
| Gen-set specifications | |||||
| Model | JW-WP25 | ||||
| Standby Rating kVA/kWe | 22/18 | ||||
| Prime Rating kVA/kWe | 20/16 | ||||
| Voltage V | 400/230 | ||||
| Frequency Hz | 50 | ||||
| Power Factor | 0.8(lagging) | ||||
| No.of Phases | 3 | ||||
| Sound@1m(dB · (A)) | Open≤105 dB(A);Silence ≤85 dB(A) | ||||
| Ambient temp(℃) | -10~45 | ||||
| Gen-set regulation class | ISO8528-5 G2 | ||||
| Steady-state voltage deviation | ≤±2.5%;≤±5% | ||||
| Transient voltage deviation (100%sudden power decrease/increase) |
+25%;-20% | ||||
| Steady-state trequency band | ≤1.5% | ||||
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
+12%;-10% | ||||
| Fuel consumption@25%/50%/75%(Lh) | 1.9/3.1/4.4 | ||||
| Fuel consumption@100%/110%(Lh) | 6/7.1 | ||||
| Standard Features | |||||
| ◆ Electronc governor | ◆DC12 Electric starter | ◆JW-WHC6120NC | |||
| ◆Closed water-cooled | ◆IP23 | ◆H type insulation | |||
| ◆Air filter | ◆Muffler | ◆Circuit Breaker | |||
| ◆Startingatteries | ◆ with connective wires | ◆ Radiator | |||
| ◆Oil Drain Valve | ◆Forklift Groove | ◆Shock Absorber | |||
| ◆ Color | Weichai blue(B,F)/beige canopy and black chassis (L) | ||||
| ◆Packaging | packing case(B,F) | ||||
| Options | |||||
| ◇Voltage380V/415V | OVoltage 440V/480V | OExternal fuel tank(1000L/1500L) | |||
| ◇Auxiliary winding | OAutomatic Transfer Switch | ◇Alternator heater | |||
| ◇Engine Heater(water) | |||||

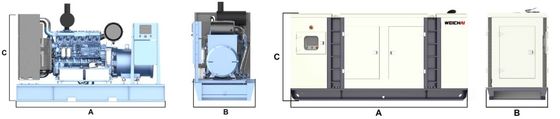

| Typical Enclosed Genset Dimensions | ||||||
| Genset Model | Prime Rating ( kVA) |
Length A(mm) |
Width B(mm) |
Height C(mm) |
Wet Weight* (kg) |
Standard Fuel tank Capacity ( L) |
| JW-WP25/B1 | 20 | 1500 | 792 | 1160 | 600 | 1 |
| JW-WP25/F1 | 20 | 1500 | 792 | 1160 | 600 | 55 |
| JW-WP25/L1 | 20 | 1900 | 720 | 1100 | 900 | 44 |
| *:Include coolantand oi | ||||||
