| Brand Name: | JIWEI |
| Model Number: | WP12D |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |

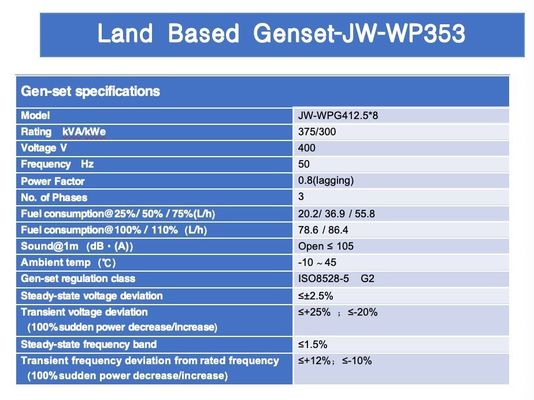

| Gen-set specifications | ||
|---|---|---|
| Model | JW-WPG412.5*8 | |
| Rating kVAkWe | 375/300 | |
| Voltage V | 400 | |
| Frequency Hz | 50 | |
| Power Factor | 0.8(lagging) | |
| No.of Phases | 3 | |
| Fuel consumption@25%/50%/75%(Lh) | 20.2/36.9/55.8 | |
| Fuel consumption@100%/110%(Lh) | 78.6/86.4 | |
| Sound@1m(dB · (A)) | Open≤105 | |
| Ambient temp(℃) | -10~45 | |
| Gen-set regulation class | ISO8528-5 G2 | |
| Steady-state voltage deviation | ≤±2.5% | |
| Transient voltage deviation (100%sudden power decrease/increase) |
≤+25%;≤-20% | |
| Steady-state frequency band | ≤1.5% | |
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
≤+12%;≤-10% | |
| Typical Genset Dimensions | ||||||
|---|---|---|---|---|---|---|
| Genset Model | Prime Rating (kVA) |
Length A(mm) |
Width B(mm) |
Height C(mm) |
Wet Weight* (kg) |
Standard Fuel tank Capacity (L) |
| JW-WP353/B8 | 375 | 3170 | 1200 | 1689 | 2960 | — |
| JW-WP353/F8 | 375 | 3170 | 1200 | 1829 | 3095 | 420 |
| *:Include coolantand oil. | ||||||
For detailed parameters, please consult me.
We have cooperation with worldwide famous brands. For more specification,please contact us.
Our OEM Partners
are from different brands. With our customized solutions consistently delivering satisfaction ,we have won an esteemed reputation.
