| Brand Name: | JIWEI |
| Model Number: | WP13D |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |

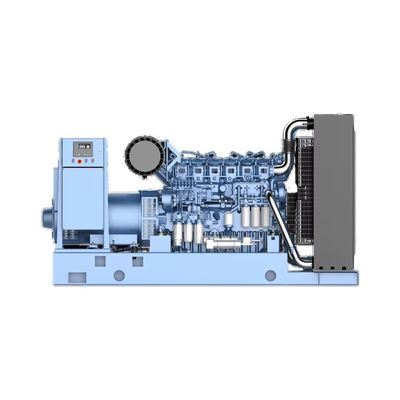

Cost-Effective 500kw 625kva Weichai Engine 600kw 750kva Diesel Generator Set
Overview
Product characteristics
| Gen-set specifications | |
| Model | JW-WP633 |
| Standby Rating kVA/kWe | 687.5/550 |
| Prime Ratng kVA/kWe | 625/500 |
| Voltage V | 400/230 |
| Frequency Hz | 50 |
| Power Factor | 0.8(lagging) |
| No.of Phases | 3 |
| Fuel consumptlon@25%50%/75%(Lh) | 37.5/66.2/97.1 |
| Fuel consumptlon@100%/110%(Lh) | 128.4/143.9 |
| Sound@1m(dB · (A)) | Opens103;Silence ≤95 |
| Amblent temp(℃) | -10~45 |
| Gen-set regulaton class | ISO 8528-5G2 |
| Steady-state voltage deviation | S±2.5% |
| Translent voltage devlation(100%sudden power decrease/increase) |
S+25%;S-20% |
| Steady-state frequency band | S1.5% |
| Translent frequency devlatlon from rated frequency (100%sudden power decrease/increase) |
≤+12%;S-10% |

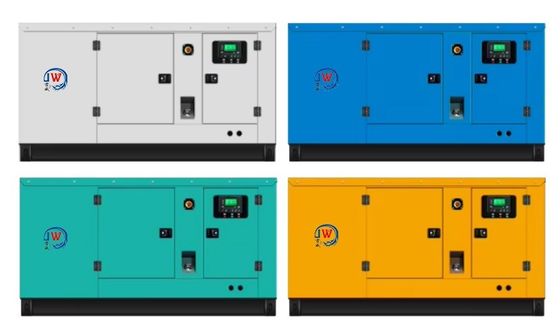

| Typical Enclosed Genset Dimensions | ||||||
| Genset Model | Rated Power (kW) |
Length A(mm) |
Width B(mm) |
Height C(mm) |
Wet Weight* (kg) |
Standard Fuel tank Capacity (L) |
| JW-WP633B73 | 500 | 3850 | 1680 | 2100 | 5200 | / |
| JW-WP63F73 | 500 | 3850 | 1680 | 2100 | 5600 | 700 |
| JW-WP633L73 | 500 | 5300 | 2100 | 2780 | 7200 | 650 |
| *:Include coolant and oil. | ||||||
| Land Based Genset-JW-WP725 | ||
| Gen-set specifications | ||
| Model | JW-WP725 | |
| Standby Rating kVA/kWe | 825/660 | |
| Prime Rating kVA/kWe | 750/600 | |
| Voltage V | 400/230 | |
| Frequency Hz | 50 | |
| Power Factor | 0.8(lagging) | |
| No.of Phases | 3 | |
| Fuel consumption@25%/50%/75%(Lh)75%(Lh) | 45.8/82.0/114.2 | |
| Fuel consumption@100%/110%(Lh) | 152.6/172.4 | |
| Sound@1m(dB · (A)) | Open≤106;Silence ≤95 | |
| Ambient temp(℃) | -10~45 | |
| Gen-set regulation class | ISO 8528-5 G2 | |
| Steady-state voltage deviation | ≤±2.5% | |
| Transient voltage deviation(100%sudden power decrease/increase) |
≤+25%;≤-20% | |
| Steady-state frequency band | ≤1.5% | |
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
≤+12%;≤-10% | |
| Typical Enclosed Genset Dimensions | ||||||
| Genset Model | Rated Power (kW) |
Length A(mm) |
Width B(mm) |
Height C(mm) |
Wet Weight* (kg) |
Standard Fuel tank Capacity (L) |
JW-WP725B73 |
600 | 3900 | 1680 | 2150 | 5800 | / |
| JW-WP725F73 | 600 | 3900 | 1680 | 2250 | 6150 | 700 |
| JW-WP725L73 | 600 | 5500 | 2180 | 2780 | 7400 | 650 |
| *:Include coolant and oil. | ||||||
For detailed parameters, please consult me.
We have cooperation with worldwide famous brands. For more specification,please contact us.
Our Advantages
![]()
![]()
![]()
![]()
Our OEM Partners
are from different brands. With our customized solutions consistently delivering satisfaction ,we have won an esteemed reputation.
FAQ
Why choose Jiwei to buy a generator set:
