| Brand Name: | JIWEI |
| Model Number: | 6M33 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |
| Gen-set specifications | |||||
| Model | JW-WP633 | ||||
| Standby Rating kVA/kWe | 687.5/550 | ||||
| Prime Rating kVA/kWe | 625/500 | ||||
| Voltage V | 400/230 | ||||
| Frequency Hz | 50 | ||||
| Power Factor | 0.8(laqqing) | ||||
| No.of Phases | 3 | ||||
| Fuel consumptlon@25%/50%175%(Lh)75%(L/h) | 41.8/68.6/97.8 | ||||
| Fuel consumptlon@100%/110%(L/h) | 129.0/143.6 | ||||
| Sound@1m(dB-(A)) | Opens102;Silence s95 | ||||
| Ambient temp(℃) | -10~45 | ||||
| Gen-set regulatlon class | ISO 8528-5G2 | ||||
| Steady-state voltage deviation | ≤±2.5% | ||||
| Transient voltage deviation (100%sudden power decrease/increase) | S+25%;S-20% | ||||
| Steady-state frequency band | S1.5% | ||||
| Transient frequency deviation from rated frequency(100%sudden power decrease/increase) | ≤+12%;S-10% | ||||
| Standard Features | |||||
|
|||||
| Options | |||||
|
|||||

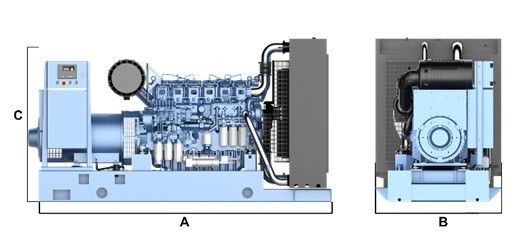

| Typical Enclosed Genset Dimensions | ||||||
| Genset Model | Rated Power (kW) | Length A(mm) | Width B(mm) | Height C(mm) | Wet Weight* (kg) | Standard Fuel tank Capacity (L) |
|---|---|---|---|---|---|---|
| JW-WP633B7 | 500 | 3850 | 1680 | 2100 | 5100 | / |
| JW-WP633F7 | 500 | 3850 | 1680 | 2210 | 5600 | 700 |
| JW-WP633L7 | 500 | 5300 | 2100 | 2780 | 7200 | 650 |
| *:Include coolantand oil. | ||||||
![]()
![]()
![]()
![]()
We have cooperation with worldwide famous brands. For more specification,please contact us.
