| Brand Name: | JIWEI |
| Model Number: | JW-WPG33/*1 |
| MOQ: | 1 |
| Price: | 2870USD |
| Payment Terms: | T/T |

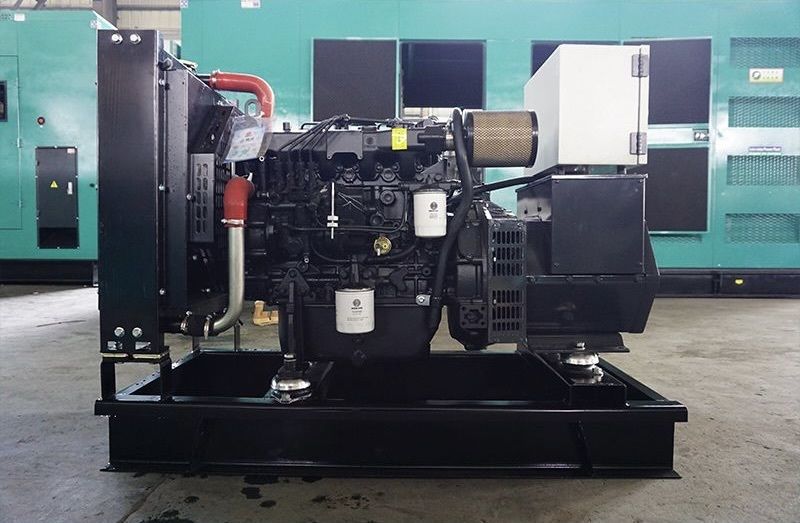

JW-24KW/30KVA Rated Power Small Diesel Generator Set Weichai Engine
Performance characteristics
• Fuel-efficient and environmentally friendly: Direct injection system + National III emission standards, fuel consumption 3.2L/h.
• Silent mode with wide adaptability: 72dB silent version, resistant to high and low temperatures/high altitudes
Smart and worry-free: Auto start-stop + multiple protections, supports unattended operation.
• Low maintenance cost: Compact structure, easy-to-replace parts, and low failure rate.
• Reliable after-sales service: Global warranty, 12-month quality guarantee
|
Gen-set specifications |
|
|
Model |
JW-WPG33/*1 |
|
Standby Rating kVA/kWe |
33/26 |
|
Prime Rating kVA/kWe |
30/24 |
|
Voltage V |
400/230 |
|
Frequency Hz |
50 |
|
Power Factor |
0.8(lagging) |
|
No. of Phases |
3 |
|
Sound@1m(dB·(A)) |
Open≤105 dB(A); Silence ≤85 dB(A) |
|
Ambient temp(℃) |
-10～45 |
|
Gen-set regulation class |
ISO8528-5 G2 |
|
Steady-state voltage deviation |
≤±2.5%;≤±5% |
|
Transient voltage deviation (100%sudden power decrease/increase) |
+25%；-20% |
|
Steady-state frequency band |
≤1.5% |
|
Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
+12%；-10% |
|
Fuel consumption@25%/ 50% / 75%(L/h) |
2.4/ 3.9/ 5.3 |
|
Fuel consumption@100% / 110%(L/h) |
7.5/ 8.3 |
|
Standard Features |
|||
|
|
♦ Electronic governor |
♦DC12 Electric starter |
♦ WEICHAI WHC6120NC |
|
♦ Closed water-cooled |
♦ IP23 |
♦H type insulation |
|
|
♦ Air filter |
♦ Muffler |
♦ Circuit Breaker |
|
|
♦Startingatteries |
♦ with connective wires |
♦ Radiator |
|
|
♦Oil Drain Valve |
♦Forklift Groove |
♦Shock Absorber |
|
|
♦ Color |
Weichai blue (B,F)/beige canopy and black chassis (L) |
||
|
♦ Packaging |
packing case(B,F) |
||
|
Options |
|||
|
|
◇Voltage380V/415V |
◇Voltage 440V/480V |
◇External fuel tank(1000L/1500L) |
|
◇Auxiliary winding |
◇Automatic Transfer Switch |
◇Alternator heater |
|
|
◇Engine Heater (water) |
|
|
|
|
Typical Enclosed Genset Dimensions |
||||||
|
Genset Model |
Prime Rating (kVA) |
Length A(mm) |
Width B(mm) |
Height C(mm) |
Wet Weight* (kg) |
Standard Fuel tank Capacity (L) |
|
JW-WPG33/B1 |
30 |
1500 |
805 |
1160 |
650 |
/ |
|
JW-WPG33/F1 |
30 |
1500 |
805 |
1160 |
650 |
55 |
|
JW-WPG33/L1 |
30 |
1900 |
720 |
1100 |
950 |
44 |
*: Include coolant and oil.
