Silent Diesel Generator Set
Created with Pixso. 12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency

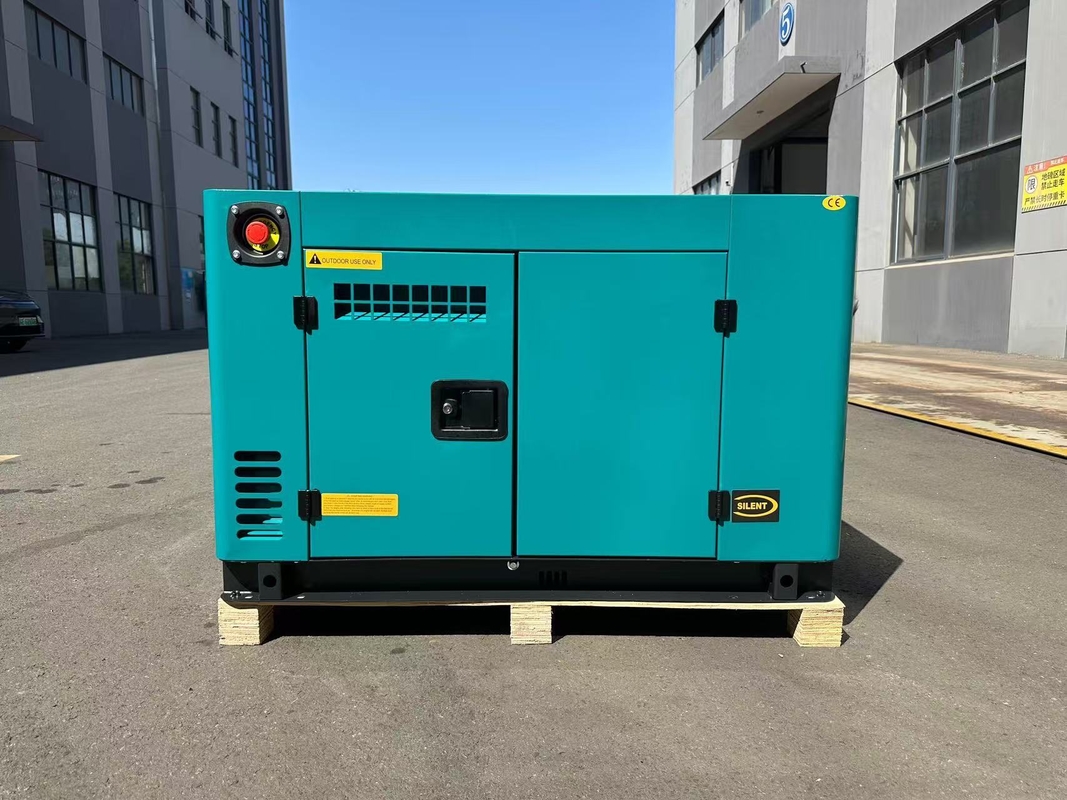

12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency

Brand Name: JIWEI
Model Number: JW-YMT
MOQ: 1
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ce
Rated Voltage:
110V/220V/230V/380V/400V/440V,120 To 440V
Frequency:
50/60HZ
Speed:
3600rpm,3000/3600RPM,1500/1800
Rated Current:
5A-30A
Rated Power:
12kw 15kva
Output Type:
AC Single Phase,DC,AC 3 Phase,Other
Color:
Customizable
Engine Type:
Two-Cylinder Four-Stroke,Air-cooled Diesel Engine,ECU
Starting System:
Manual Start, Remote Start, Electric Start
Function:
Provide Electric Power
Fuel Tank Capacity:
10-25L,According To Customers' Requirement
Alternator Type:
Brush Alternator With AVR Or Brushless With AVR,Three Phase Alternator
Product:
12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency
Highlight:

12KW silent diesel generator

,

15KVA all-copper generator

,

220V 380V high efficiency generator

Product Description

12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency


Overview


Silent diesel generators are specifically designed to minimize noise output, making them ideal for environments that require quiet operation. Below are the key features and applications of silent diesel generators.

Features

  1. Low Noise Design

    • Uses soundproof materials and specially designed silencers to significantly reduce operational noise.
  2. High Efficiency

    • Generally exhibits high fuel efficiency, providing stable power output over extended periods.
  3. Durability

    • Built with a robust diesel engine structure, suitable for long-running and heavy-load conditions.
  4. Portability

    • Many models are designed to be mobile, allowing for easy relocation and use in various settings.
  5. Environmental Protection

    • Complies with modern environmental standards, reducing emissions and ensuring eco-friendliness.

Applications

  1. Backup Power Supply

    • Acts as an emergency power source during outages, ensuring continuity for critical operations such as hospitals and data centers.
  2. Outdoor Activities

    • Supplies reliable power for events such as weddings, concerts, and other outdoor gatherings.
  3. Construction Sites

    • Provides electricity to construction sites lacking access to the electrical grid, powering tools and site facilities.
  4. Remote Areas

    • Delivers power for research stations, mining operations, and other activities in isolated locations.

Silent diesel generators are versatile and essential in maintaining power in sensitive and varied environments.


Specification


MODEL YMT15000STA-3) YMT18000STA-3)
Frequency HZ 50 60 50 60
Voltage V 220,230, 240,110/220,127/220,115/23 0,120/240,220/380,230/40 0,240/415
Rated Power KVA 11.5(13.7) 12(15) 15(18.8) 16(20)
Max.Power KVA 12.5(15) 13(16.2) 16(20) 17(21.2)
Phase Number   1-phase/3-phase 1-phase/3-phase
Excitation   self-exciting,brush self-exciting,brush
Power Factor   1.0(0.8) 1.0(0.8)
Insulation Grade   F F
Fuel Capacity L 25 25
Noise Level(@7m) dB(A) 75 75
Engine Model   2V92 2V95
Engine Type   2-cylinder,4-stroke,air-cooled,VType 2-cylinder,4-stroke,air-cooled,VType
Starting System   Electric start Electric start
Broke*Stroke mm 92*75 95*88
Displacement L 0.997 1.247
Compression Ratio   20.0:1 20.0:1
Rated Rotation Speed rpm 3000 3600 3000 3600
Rated Power KW 14 15.5 19 21
Lube Oil Capacity L 3.8 4
Fuel Type   0#(summer),-10#(winter)diesel 0#(summer),-10#(winter)diesel
Lube Oil   SAE10W30(CF grade or above) SAE10W30(CF grade or above)
Optional   ATS ATS
  Remote control Remote control
  Digital smart panel Digital smart panel
Overall Dimension mm 1200*720*880 1250*720*880
Net Weight kg 260 270



12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency 0

12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency 1

12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency 2

12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency 3

12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency 4

12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency 5

12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency 6


FAQ


1.Q: What is your MOQ of this item?
A:1 Set.

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.
