| Brand Name: | JIWE |
| Model Number: | JW-C1100 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |

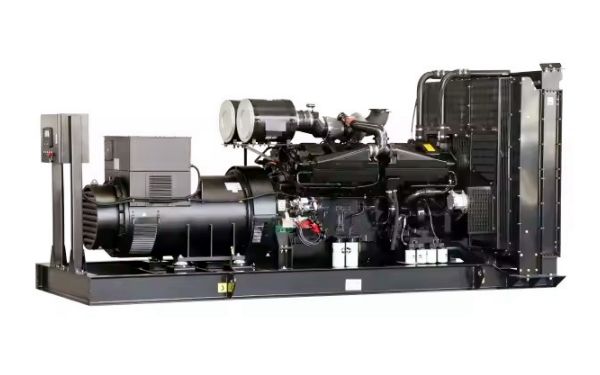

800kw 1000kva CCEC KTA38-G5 Power Diesel Generator Standford Emergency Primary
ENGINE SPECIFICATION | |
Manufacturer /Model | CCEC KTA38-G5 |
Air intake system | Turbo, Air/Water cooling |
Fuel system | PT type fuel pump, EFC |
Cylinder arrangement | 12 in “V" |
Displacement | 37.8L |
Bore and stroke | 159*159(mm) |
Compression ratio | 13.9:1 |
Rated speed | 1500rpm |
Max. Standby power at rated speed | 970 KW /1319 HP |
Governor type | Electronic |
GENERATING SET DATA | |
Related range of voltage setting | ≥±5% |
Steady-state voltage deviation | ≤±1% |
Transient voltage deviation (100 % sudden power decrease) | ≤+25% |
Transient voltage deviation (sudden power increase) | ≤-20% |
Voltage recovery time (100% sudden power decrease) | ≤6S |
Voltage recovery time (sudden power increase) | ≤6S |
Related range of frequency setting | 0-5% adjustable |
Steady-state frequency band | ≤1.5% |
Transient frequency deviation (100 % sudden power decrease) | ≤+12% |
Transient frequency deviation (sudden power increase) | ≤-10% |
Frequency recovery time (100 % sudden power decrease) | ≤5S |
Frequency recovery time (sudden power increase) | ≤5S |
