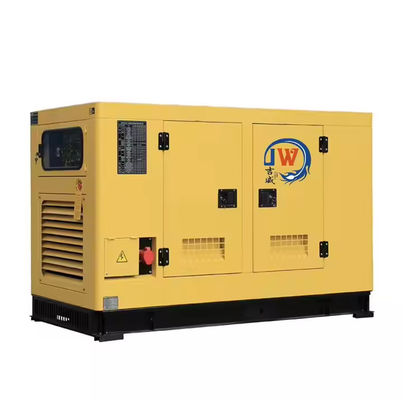

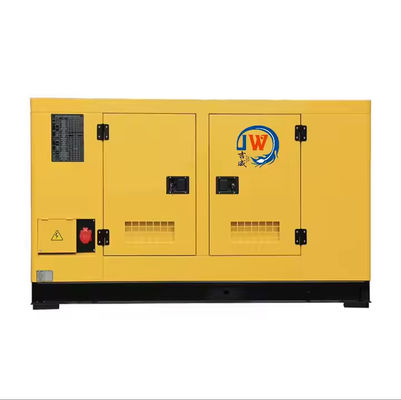

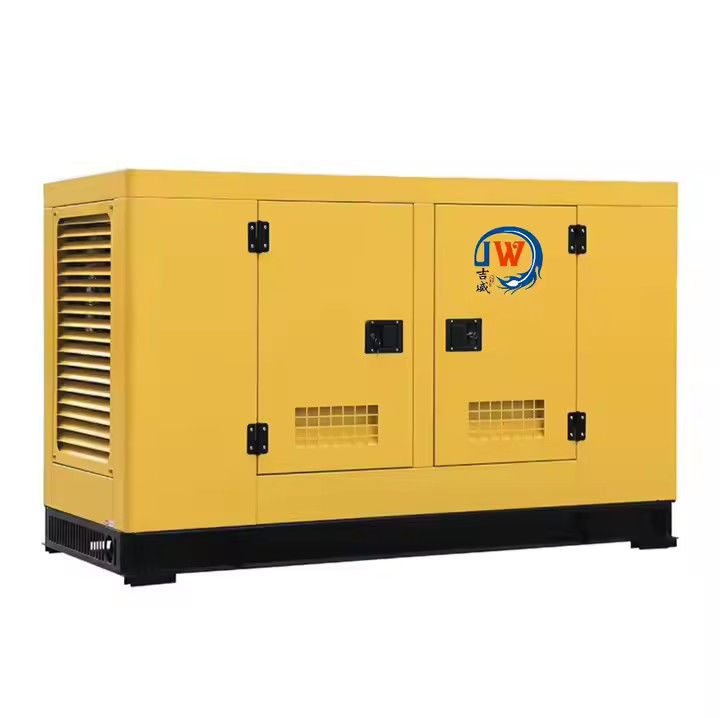

16kw 20kVA Soundproof Diesel Generator Set 50Hz/60Hz Low Fuel Consumption Safe Operation

Name: 16kw 20kVA Soundproof Diesel Generator Set 50Hz/60Hz Low Fuel Consumption Safe Operation
Brand: Sichuan Jiweicheng Electric Power Equipment Co., Ltd.
SKU: WP4.1
Price: 2,006.00 USD
Availability: InStock

Brand Name:	JIWEI
Model Number:	WP4.1
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rated Voltage:

400V , 230V

Rated Current:

30A-40A

Speed:

1500RPM, 1800RPM

Frequency:

50/60hz

Starting System:

24V DC Electric Start

Type:

Container Type, Open Frame, Mobile Type

Cooling System Type:

Water Cooling System

Warranty:

Other

Rated Power:

16kw 20kVA

Engine:

Weichai/SDEC/cummins

Product Name:

16kw 20kVA Soundproof Diesel Generator

Color:

Customizable

Highlight:

Safe Operation Soundproof Diesel Generator Set

16kw Soundproof Diesel Generator Set

20kVA Soundproof Diesel Generator Set

Product Description

16kw 20kVA Soundproof Diesel Generator Set 50Hz/60Hz Low Fuel Consumption Safe Operation

Overview

Characteristics

Low Noise: Implementing various sound insulation and noise reduction measures has significantly lowered the noise level to below 75 decibels.
Stable Performance: The power system is robust, providing stable generator output for continuous and reliable operation across different working conditions.
Economic and Energy-Saving: Some units utilize advanced oil control technology to minimize fuel consumption.
Easy Maintenance: Thoughtful structural design includes features like inspection doors and external oil filling ports, simplifying daily maintenance and inspections.

Application Fields

Industrial Field: Used in factories, mines, and construction sites as a backup power source during outages.
Business Field: Provides emergency power for shopping malls, hotels, and office buildings to ensure uninterrupted operations.
Medical Field: Essential for hospitals, particularly for operating rooms and intensive care units, requiring reliable backup power.
Data Centers: Ensures uninterruptible power supply for servers and other critical equipment to prevent data loss.
Outdoor Operations: Supports power needs in field exploration, engineering projects, and similar activities.

Datasheet

Gen-set specifications
Model	JW-WP25
Standby Rating kVA/kWe	22/18
Prime Rating kVA/kWe	20/16
Voltage V	400/230
Frequency Hz	50
Power Factor	0.8(lagging)
No. of Phases	3
Sound@1m(dB·(A))	Open≤105 dB(A); Silence ≤85 dB(A)
Ambient temp(℃)	-10～45
Gen-set regulation class	ISO8528-5 G2
Steady-state voltage deviation	≤±2.5%;≤±5%
Transient voltage deviation (100%sudden power decrease/increase)	+25%；-20%
Steady-state frequency band	≤1.5%
Transient frequency deviation from rated frequency (100%sudden power decrease/increase)	+12%；-10%
Fuel consumption@25%/ 50% / 75%(L/h)	1.9/ 3.1/ 4.4
Fuel consumption@100% / 110%(L/h)	6/ 7.1

We have cooperation with worldwide famous brands. For more specification,please contact us.

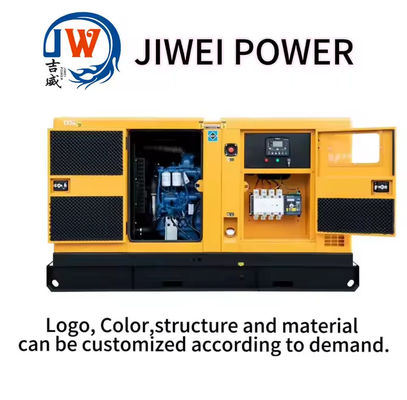

Our Advantages

Our OEM Partners

are from different brands. With our customized solutions consistently delivering satisfaction ,we have won an esteemed reputation.

FAQ

1.Q: What is your MOQ of this item?
A:1 Sets.

Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.
