12V 24V Generator Battery Charger 3A - 10A Output Small Portable Power Station

Name: 12V 24V Generator Battery Charger 3A - 10A Output Small Portable Power Station
Brand: Sichuan Jiweicheng Electric Power Equipment Co., Ltd.
SKU: AKSW
Price: 2,006.00 USD
Availability: InStock

Brand Name:	Aisikai
Model Number:	AKSW
MOQ:	10 pieces
Price:	Negotiable
Delivery Time:	10 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Warranty:

Other

Product Name:

Maximum 12V/24V Battery Charger

Usage:

Generator,Yamaha,Distant Control&Multiple Protection,water Pump Engine Etc,Diesel Engine

Stock:

In Stock

Color:

Black,white,Black Or Request

Package:

Carton

Oem Service:

Yes

Origin:

CHINA

Highlight:

12V Generator Battery Charger

24V Generator Battery Charger 3A

10A portable power station

Product Description

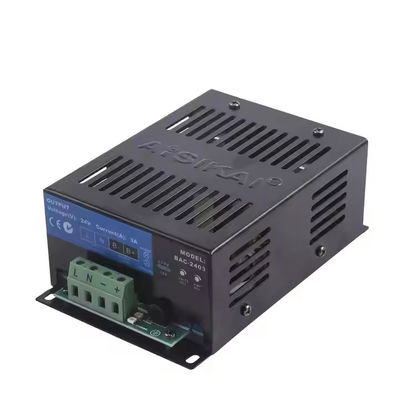

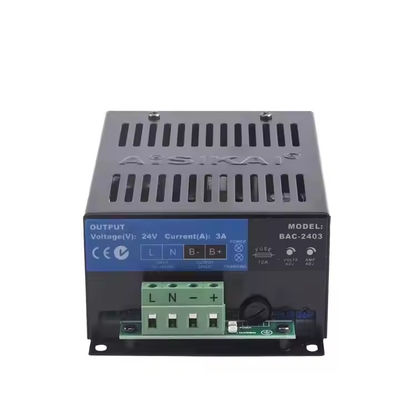

Maximum 12V/24V Battery Charger With 3A-10A Output Small Size, Light Weight And High Efficiency Generator Parts & Accessories

Product Features Overview

Efficient Switching Power Supply Structure:
- Compact design with a wide input current and voltage range, ensuring high efficiency while being lightweight.
Two-Stage Charging Method:
- Automatic charging utilizes a two-stage process (constant current followed by constant voltage), preventing overcharging of lead-acid batteries and extending their lifespan.
Short Circuit and Reverse Protection:
- Equipped with safety features to protect against short circuits and reverse polarity, enhancing operational safety.
Adjustable Charging Parameters:
- On-site adjustments for charging voltage and current can be made using a potentiometer, allowing customization for various applications.
Status LED Display:
- Includes LED indicators for power and charging status, facilitating easy monitoring of operational conditions.
Horizontal Installation:
- Designed for straightforward horizontal mounting, simplifying the installation process in diverse environments.

The following are different models.

category	entry	12V	24V
Product model	BAC	BAC-1206	BAC-2403/2405/2410
Input characteristic	Nominal AC input voltage	AC(100~240)V
	Maximum AC input voltage	AC(90~305)V
	Ac frequency	50Hz/60Hz
	Maximum input current	2.5A	2.5A/2.5A/4A
	efficiency	>85%
Output characteristic	Charging current range	4A~6A,±2%	2A~3A/5A/10A,±2%
	Factory charging current	6A	3A/5A/10A
	Maximum output power	135W	135W/135W/290W
	Minimum output voltage	7.5V
	No load output voltage	13.8V,误差±1%	27.6V,误差±1%
	No-load power consumption	<3W
Insulation property	insulation resistance	Input and output, input and enclosure are DC500V 1min condition, Insulation resistance RL≥50MΩ
	isolation voltage	Input and output, input and housing are AC1500V 50Hz 1min condition, Leakage current L≤3.5mA
Working environment	Operating temperature	(-30~55)℃
	Storage temperature	(-40~85)℃
	Working humidity	10%RH~95%RH
Outline structure	weight	0.65kg	0.65/0.65/1.15kg
	Dimensions (length × width × height mm	143×96×55(3A/5A/6A);205×146×55(10A);

FAQ

1.Q: What is your MOQ of this item?
A:10 Sets.

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:10000 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.
