| Brand Name: | JIWEI |
| Model Number: | WP4.1 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | ,T/T |

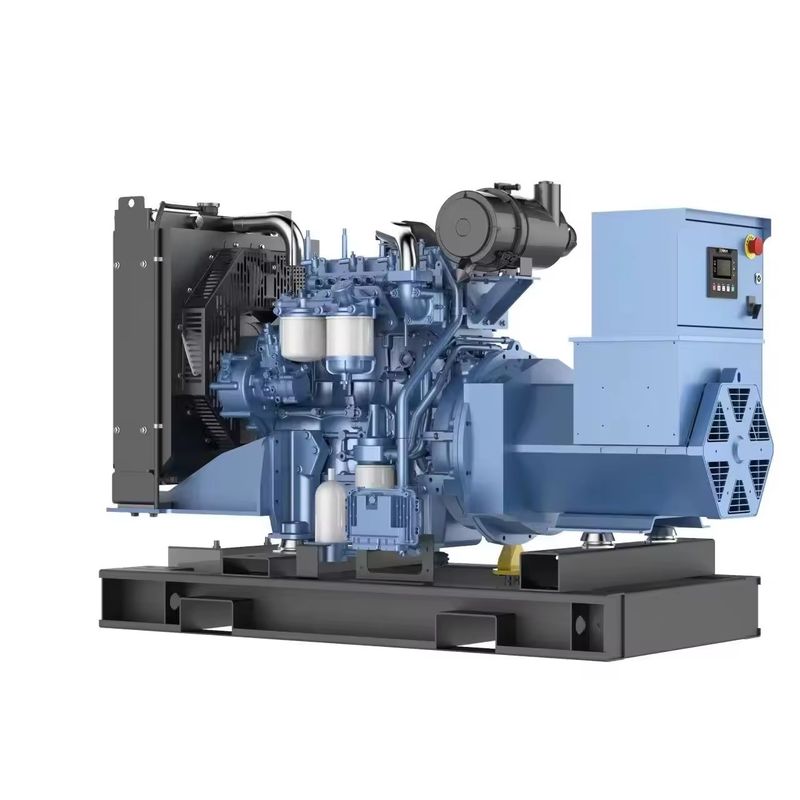

| Land Based Genset-JW-WP66 | ||||||
| Gen-set specifications | ||||||
| Model | JW-WP66 | |||||
| Standby Rating kVAkWe | 68.5/55 | |||||
| Prime Rating kVAkWe | 62.5/50 | |||||
| Voltage V | 400/230 | |||||
| Frequency Hz | 50 | |||||
| Power Factor | 0.8(lagging) | |||||
| No.of Phases | 3 | |||||
| Fuel consumption@25%/50%/75%(Lh) | 4.34/7.12/9.46 | |||||
| Fuel consumption@100%/110%(Lh) | 13/14.13 | |||||
| Sound@1m(dB · (A)) | Open≤105 dB(A);Silence≤85 dB(A) | |||||
| Ambient temp(℃) | -10~45 | |||||
| Gen-set regulation class | ISO8528-5 G2 | |||||
| Steady-state voltage deviation | ≤±2.5%;≤±5% | |||||
| Transient voltage deviation (100%sudden power decrease/increase) |
+25%;-20% | |||||
| Steady-state frequency band | ≤1.5% | |||||
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
+12%;-10% | |||||

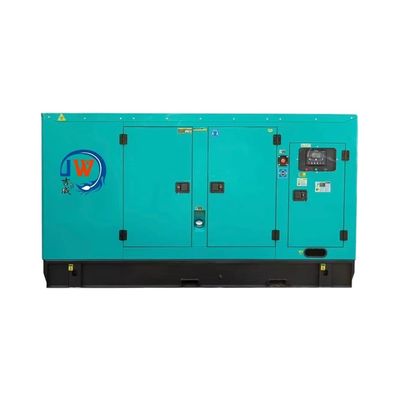

| Typical Enclosed Genset Dimensions | ||||||
| Genset Model | Prime Rating (kVA) | Length A(mm) | Width B(mm) | Height C(mm) | Wet Weight* (kg) | Standard Fuel tank Capacity (L) |
|---|---|---|---|---|---|---|
| JW-WP66B1 | 50 | 1930 | 860 | 1218 | 925 | / |
| JW-WP66F1 | 50 | 1930 | 860 | 1218 | 1030 | 105 |
| JW-WP66L1 | 50 | 2880 | 1050 | 1600 | 1420 | 180 |
| :Include coolantand oil | ||||||
We have cooperation with worldwide famous brands. For more specification,please contact us.
