| Brand Name: | JIWEI |
| Model Number: | WP4.6N |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
Product characteristics
● Reliable performance: parts are carefully selected and tested, advanced manufacturing technology and strict quality control to ensure stable operation in harsh environments.
● Economic and environmental protection: mature technology, good fuel atomization, can effectively reduce fuel consumption, reduce energy waste and emissions.
● Good mute effect: using noise reduction technology such as sound insulation materials and shock absorption devices, low noise operation.
● Easy maintenance: rotary diesel, oil filter, dry air filter, compact structure, simple maintenance operation, easy maintenance during backup.
● Quick start: can start in a few seconds, and quickly reach full power, emergency 1 minute to full load.
Application field
● Industrial field: can be used in manufacturing, metallurgy, electronics, machinery and other industries, to provide stable power support for production lines, machinery and equipment.
● Commercial field: hotels, supermarkets, entertainment venues and other commercial buildings, as backup power or main power supply, to ensure daily operations.
● Energy field: In the development and utilization of energy resources such as oil fields and mines, it provides electricity for exploration, mining and processing.
● Transportation: It can be used as an emergency backup power supply for airports, railways, subways and other transportation places to ensure the safety of traffic operation.
● Other fields: can also be used in ships, communications, medical, data center and other fields.
| Land Based Genset-JW-WP138 | |||||
| Gen-set specifications | |||||
| Model | JW-WP138 | ||||
| Standby Rating kVA/kWe | 137.5/110 | ||||
| Prime Rating kVAkWe | 125/100 | ||||
| Voltage V | 400/230 | ||||
| Frequency Hz | 50 | ||||
| Power Factor | 0.8(lagging) | ||||
| No.of Phases | 3 | ||||
| Fuel consumption@25%/50%/75%(Lh) | 8.07/14.13/20.17 | ||||
| Fuel consumption@100%/110%(Lh) | 28.11/30.59 | ||||
| Sound@1m(dB · (A)) | Open≤105 dB(A);Silence≤85 dB(A) | ||||
| Ambient temp(℃) | -10~45 | ||||
| Gen-set regulation class | ISO8528-5 G2 | ||||
| Steady-state voltage deviation | ≤±2.5%;≤±5% | ||||
| Transient voltage deviation (100%sudden power decrease/ncrease) |
+25%;-20% | ||||
| Steady-state frequency band | ≤1.5% | ||||
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
+12%;-10% | ||||
| Standard Features | |||||
| ◆ Electronic governor | ◆DC24 Electric starter | ◆JW-WHC6120CAN | |||
| ◆Closed water-cooled | ◆IP23 | ◆Htype insulation | |||
| ◆Air filter | ◆ Muffler | ◆Circuit Breaker | |||
| ◆Startingbatteries | ◆ with connective wires | ◆ Radiator | |||
| ◆Oil Drain Valve | ◆Forklift Groove | ◆Shock Absorber | |||
| ◆ Color | Weichai blue(B,F)/beige canopy and black chassis(L) | ||||
| ◆Packaging | packing case(B,F) | ||||
| Options | |||||
| ◇Voltage380V/415V | OVoltage 440V/480V | ◇Extemal fuel tank (1000L/1500L) |
|||
| ◇Single Voltage 220V/230V | ◇Automatic Transfer Switch | OAlternator heater | |||
| ◇Engine Heater(water) | ◇PMG/AREP | ||||

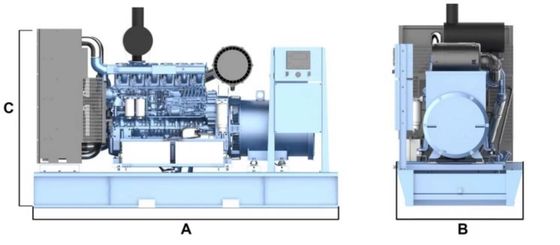

| Typical Enclosed Genset Dimensions | ||||||
| Genset Model | Prime Rating (kVA) |
Length A(mm) |
Width B(mm) |
Height C(mm) |
Wet Weight (kg) |
Standard Fuel tank Capacity (L) |
| JW-WP138B1 | 100 | 1930 | 1038 | 1552 | 1180 | / |
| JW-WP138F1 | 100 | 1930 | 1038 | 1552 | 1260 | 105 |
| JW-WP1385L1 | 100 | 3200 | 1050 | 1850 | 1810 | 360 |
| *:Include coolantand ol | ||||||
