| Brand Name: | JIWEI |
| Model Number: | WP3.2 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |
Product characteristics
● Excellent performance: wide range of uses, stable and reliable performance, high cost performance.
High efficiency and energy saving: Using high efficiency fuel injection technology and advanced turbocharging mechanism, high combustion efficiency and high energy utilization efficiency.
● Environmental protection and low noise: in line with international environmental standards, low emission level, the use of noise mitigation technology, so that the noise control in a low range.
● Advanced design: integrated crankshaft box structure and modular design technology, light weight, small size, high efficiency, low fuel consumption.
● Easy maintenance: compact structure, easy operation, flexible maintenance, high degree of automation, can adjust the output voltage and frequency according to load changes, and can achieve remote control.
Application field
● Industrial field: to meet the power needs of manufacturing, metallurgy, electronics, machinery and other industrial places of different scales.
● Commercial field: suitable for hotels, supermarkets, entertainment venues and other commercial buildings requiring stable electricity support.
● Energy field: can be used in oil fields, mines, wind power, solar energy and other energy resources development and utilization.
● Transportation: It can be used as an emergency backup power supply for airports, stations, subways and other transportation places to ensure the safety of traffic operation.

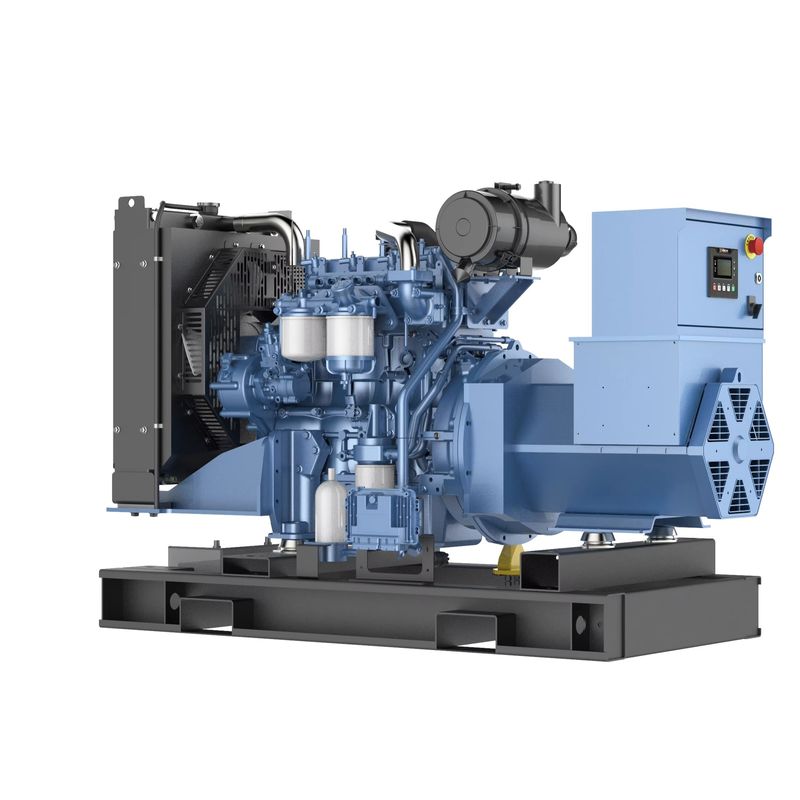

| Gen-set specifications | |||||
| Model | JW-WP20 | ||||
| Standby Rating kVAkWe | 16.5/13.2 | ||||
| Prime Rating kVAkWe | 15/12 | ||||
| Voltage V | 400/230 | ||||
| Frequency Hz | 50 | ||||
| Power Factor | 0.8(lagging) | ||||
| No.of Phases | 3 | ||||
| Fuel consumption@25%/50%/75%(Lh) | 1.16/1.93/2.60 | ||||
| Fuel consumption@100%/110%(Lh) | 3.19/3.46 | ||||
| Sound@1m (dB · (A)) | Open≤99dB(A);Silence ≤85 dB(A) | ||||
| Ambient temp(C) | -10~45 | ||||
| Gen-set reguation class | ISO8528-5 G2 | ||||
| Steady-state voltage deviation | ≤±2.5% | ||||
| Transient voltage deviation (100%sudden power decrease/ncrease) |
≤+25%;≤20% | ||||
| Steady-state frequency band | ≤1.5% | ||||
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
≤+12%;≤10% | ||||
| Standard Features | |||||

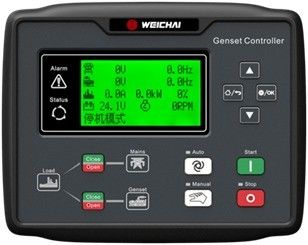

| ◆ECU | ◆DC12VElectric starter | ◆JW-WHC6120CAN | |||
| ◆Closed water-cooled | ◆ IP23 | ◆H type insulation | |||
| ◆Air filter | ◆ Muffler | ◆Circuit Breaker | |||
| ◆Startingbatteries | ◆with connective wires | ◆ Radiator | |||
| ◆Oil Drain Valve | ◆Forklift Groove | ◆Shock Absorber | |||
| ◆Color | Weichai blue(B,FVbeige canopy and black chassis(L) | ||||
| ◆ Packaging | wrapping film | ||||
| Options | |||||
| ◇Voltage380V/415V | Voltage 440V/480V | ◇Single Voltage 220V/230V | |||
| Automatic Transfer Switch | Alternator heater | ◇Engine Heater(water) | |||
| ◇External fuel tank(1000L/1500L) | ◇Auxiliary winding | ||||

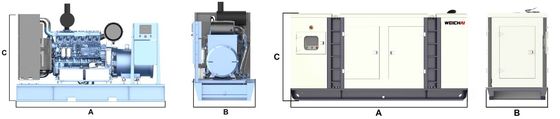

| Typical Genset Dimensions | ||||||
| Genset Model | Prime Rating (kVA) |
Length A(mm) |
Wdth B(mm) |
Height C(mm) |
Wet Weight* (kg) |
Standard Fuel tank Capacity (L) |
| JW-WP20B13 | 15 | 1458 | 723 | 1058 | 555 | / |
| JW-WP2CF13 | 15 | 1570 | 723 | 1158 | 655 | 62 |
JW-WP2OL13 |
15 | 2260 | 860 | 1160 | 785 | 62 |
| *:Include coolantand oil. | ||||||
