| Brand Name: | JIWEI |
| Model Number: | WP10D |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |
| Gen-set specifications | ||||||
|---|---|---|---|---|---|---|
| Model | JW-WPG275*83 | |||||
| Standby Rating kVA/kWe | 275/220 | |||||
| Prime Rating kVA/kWe | 250/200 | |||||
| Voltage V | 400/230 | |||||
| Frequency Hz | 50 | |||||
| Power Factor | 0.8(lagging) | |||||
| No.of Phases | 3 | |||||
| Fuel consumption@25%/50%/75%(Lh) | 15.5/28.1/40.9 | |||||
| Fuel consumption@100%/110%(Lh) | 54.9/61.1 | |||||
| Sound@1m(dB · (A)) | Open≤105;Silence ≤85 | |||||
| Ambient temp(℃) | -10~45 | |||||
| Gen-set regulation class | ISO8528-5 G2 | |||||
| Steady-state voltage deviation | ≤±2.5% | |||||
| Translent voltage devlation (100%sudden power decrease/increase) |
≤+25%;≤-20% | |||||
| Steady-state frequency band | ≤1.5% | |||||
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
≤+12%;S-10% | |||||
| Standard Features | ||||||

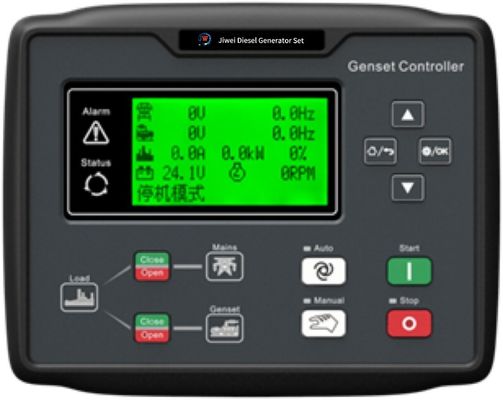

| ◆ECU | ◆DC24 Electric starter | ◆JW-WHC6120CAN | ||||
| ◆Closed water-cooled | ◆ IP23 | ◆H type insulation | ||||
| ◆Ar filter | ◆ Muffler | ◆Circuit Breaker | ||||
| ◆Statingbatteries | ◆ with connective wires | ◆ Radiator | ||||
| ◆Oil Drain Valve | ◆Forklift Groove | ◆Shock Absorber | ||||

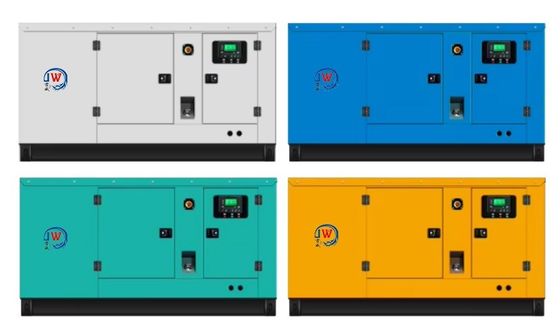

| ◆ Color | Weichai blue(F)/beige canopy and black chassis (L) | |||||
| ◆ Packaging | Wound film packing | |||||
| Options | ||||||
| ◇Voltage380V/415V | OVoltage 440V/480V | ◇Single Voltage 220V/230V | ||||
| ◇Automatic Transfer Switch | OAutomatic Parallel system | OPMG | ||||
| ◇Engine Heater(water) | OEngine Heater(air inlet) | OAltermator heater | ||||
| ◇External fueltank(1000L/1500L) | ||||||

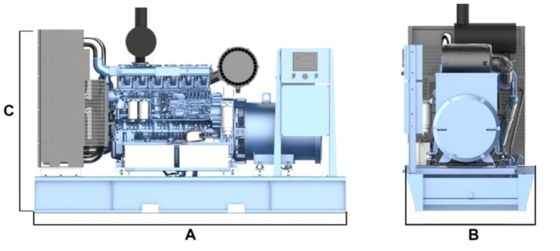

| Typical Genset Dimensions | ||||||
|---|---|---|---|---|---|---|
| Genset Model | Prime Rating (kVA) | Length A(mm) | Width B(mm) | Height C(mm) | Wet Weight* (kg) | Standard Fuel tank Capacity (L) |
| JW-WP264/B83 | 250 | 2999 | 1170 | 1780 | 2350 | / |
| JW-WP264/F83 | 250 | 2999 | 1170 | 1920 | 2450 | 420 |
| JW-WP264/L83 | 250 | 3900 | 1350 | 2050 | 3220 | 460 |
| *:Include coolant and oil. | ||||||
For detailed parameters, please consult me.
We have cooperation with worldwide famous brands. For more specification,please contact us.
![]()
![]()
![]()
![]()
