| Brand Name: | JIWEI |
| Model Number: | 20M33 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |
Technical characteristics

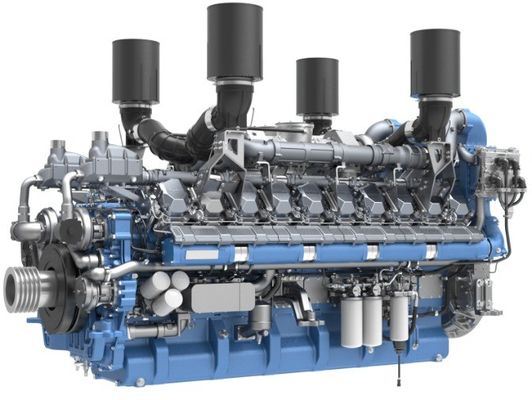

● Advanced power system: Weichai advanced power system, the use of new fuel injection technology and intelligent control system, accurate control, efficient operation, fuel efficient utilization, reduce operating costs.
● High stability and reliability: fully enclosed structure design, equipped with multiple protection devices, can also operate normally in harsh environments, failure can be timely alarm and automatic stop work.
● Intelligent management: real-time monitoring of operating status and parameters through remote monitoring system, fault diagnosis and maintenance management, improve operability and management efficiency.
Performance parameter
● Common power: 1800KW, reserve power 1980KW.
● Frequency: 50Hz, output voltage 400/230V, speed 1500rpm, power factor COSΦ=0.8 (lag).
● Fuel consumption of the unit: 434.1g/Kw*h, output current 3248A, phase number/line number of three-phase four-wire.
● Noise LP7m: 105db, oil capacity 480L, coolant capacity 738L, net weight 2200kg.
Application field
● Industrial production: as a backup power supply, to ensure continuous production in case of power failure or emergency.
● Commercial buildings: can be used as the main power supply equipment, to provide stable and reliable power supply when the power failure.
● Rural areas: Solve the problem of lack of stable power supply in remote areas.
● Special occasions: such as field construction, mobile activities, etc., its strong portability, fast start characteristics can meet the temporary demand for electricity.

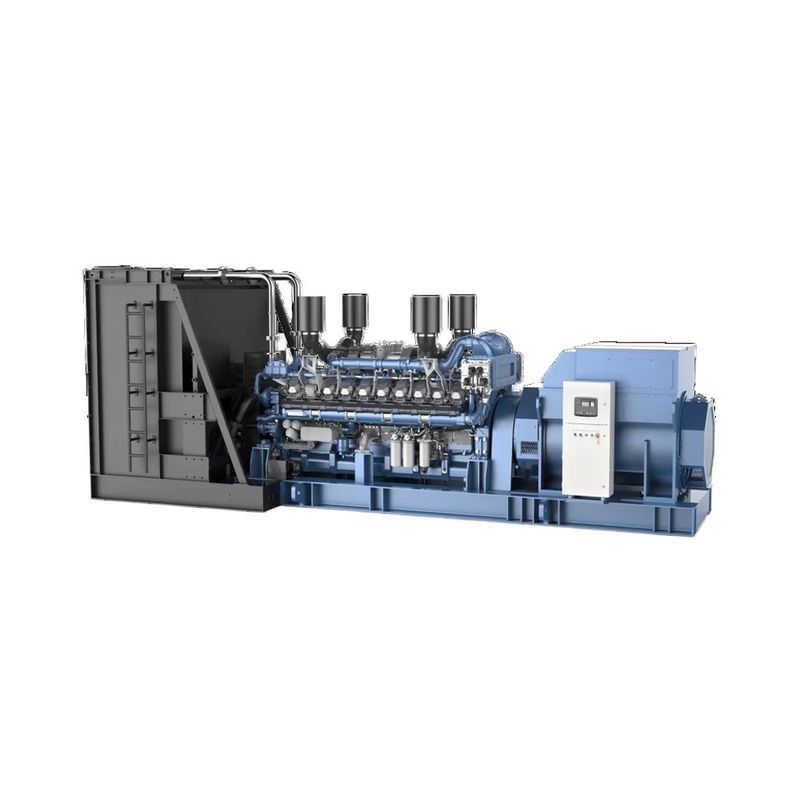

| Land Based Genet-JW-WP2210 | ||||||
| Gen-set specifications | ||||||
| Model | JW-WP2210 | |||||
| Standby Rating kVA/kWe | 2500/2000 | |||||
| Prime Rating kVA/kWe | 2250/1800 | |||||
| Voltage V | 400/230 | |||||
| Frequency Hz | 50 | |||||
| Power Factor | 0.8(lagging) | |||||
| No.of Phases | 3 | |||||
| Fuel consumption@25%/50%/75%(Lh) | 140/240/340 | |||||
| Fuel consumption@100%/110%(Lh) | 460/515 | |||||
| Sound@7m(dB · (A)) | Open≤107;Silence≤85 | |||||
| Ambient temp (C) | -10~45 | |||||
| Gen-set regulation class | ISO8528-5 G3 | |||||
| Steady-state voltage deviation | ≤±1% | |||||
| Transient voltage deviation (100%sudden power decrease/increase) |
≤+20%;≤15% | |||||
| Steady-state frequency band | 90.5% | |||||
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
+10%;-7% | |||||
| Standard Features | ||||||
| ◆Electrical Control Unit | ◆DC24 Electric starter | ◆JW WHC9510N | ||||
| ◆Closed water-cooled | ◆IP23 | ◆H type insulation | ||||
| ◆Air filter | ◆Muffler | ◆ Circuit Breaker | ||||
| ◆Startingbatteries | ◆with connective wires | ◆ Radiator | ||||
| ◆Oil Drain Valve | ◆Shock Absorber | |||||
| ◆Coor | Weichai blue (B)/RAL9010(C) | |||||
| ◆Packaging | packing case(B) | |||||
| Options | ||||||
| OVoltage380V/415V | OVoltage 440V/480V | OVoltage 6.3kV/10.5KV/13.8kV | ||||
| OAutomatic Transfer Switch | OAltermator heater | OEngine Heater(water) | ||||
| OExtemalfuel tank(1000L/1500L) | ||||||

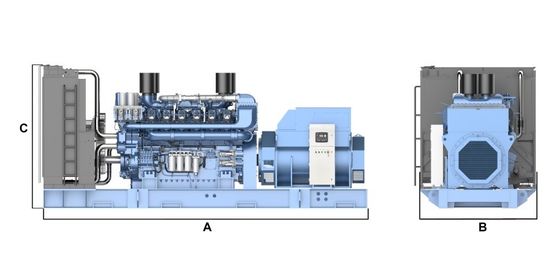

| Typical Enclosed Genset Dimensions | ||||||
| Genset Model | Prime Rating (kVA) |
Length A(mm) |
Width B(mm) |
Height C(mm) |
Wet Weight* (kg) |
Standard Fuel tank Capacity (L) |
| JW-WP2210B73 | 2250 | 7010 | 2680 | 2980 | 18400 | / |
| JW-WP2210C73 | 2250 | 12192 | 2438 | 2896 | 31000 | 1000 |
| :Include coolant and oil | ||||||
