| Brand Name: | JIWEI |
| Model Number: | 16M55 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |

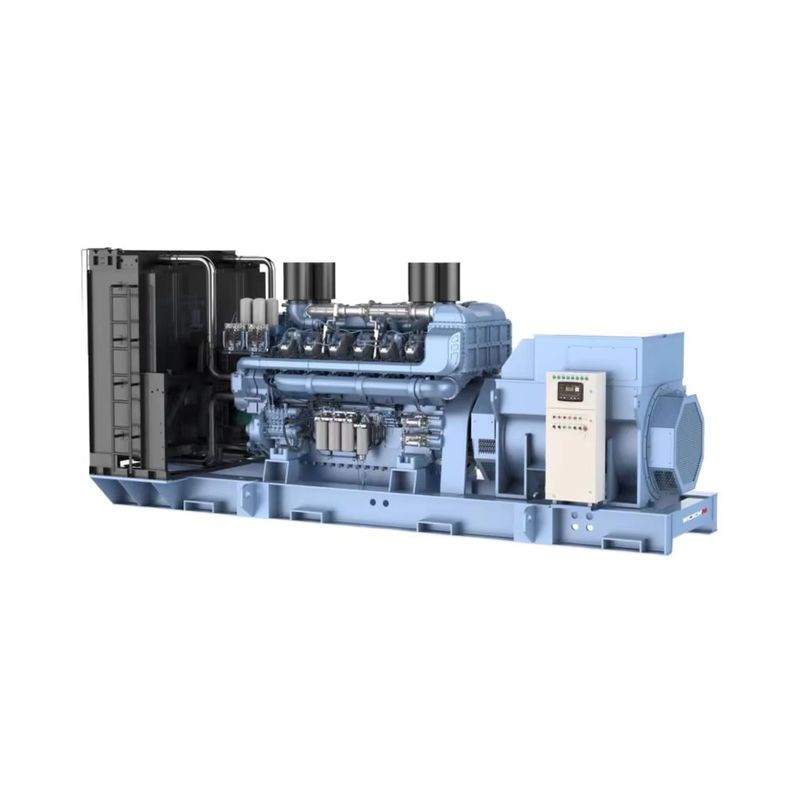

Low Noise 2400kw Weichai Marine Generator 2600Kw 3250 Kva 3000 Kva Diesel Generator
| Land Based Genset-JW-WP2900 | |||||
| Gen-set specifications | |||||
| Model | JW-WP2900 | ||||
| Standby Rating kVA/kWe | 3300/2640 | ||||
| Prime Rating kVA/kWe | 3000/2400 | ||||
| Voltage V | 400/230 | ||||
| Frequency Hz | 50 | ||||
| Power Factor | 0.8(lagging) | ||||
| No.of Phases | 3 | ||||
| Fuel consumption@25%/50%175%(Lh) | 210/325/450 | ||||
| Fuel consumption@100%/110%(L/h) | 590/655 | ||||
| Sound@7m (dB · (A)) | Open≤110;Silence≤85 | ||||
| Ambient temp(℃) | -10~40 | ||||
| Gen-set regulation class | ISO8528-5 G3 | ||||
| Steady-state voltage deviation | ≤±1% | ||||
| Transient voltage deviation (100%sudden power decrease/increase) |
≤+20%;≤-15% | ||||
| Steady-state frequency band | ≤0.5% | ||||
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
+10%;-7% | ||||
| Standard Features | |||||

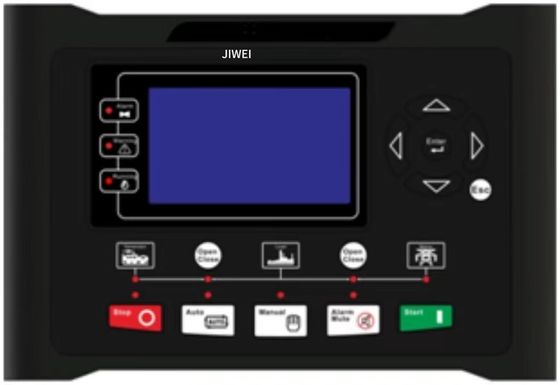

| ◆Electrical Control Unit | ◆DC24 Electric starter | ◆JW-WHC9510N | |||
| ◆Closed water-cooled | ◆ IP23 | ◆H type insulation | |||
| ◆Air filter | ◆ Muffler | ◆ Circuit Breaker | |||
| ◆Startingbatteries | ◆ with connective wires | ◆ Radiator | |||
| ◆Oil Drain Valve | ◆Shock Absorber | ||||
| ◆ Color | Weichai blue(B)/RAL9010(C) | ||||
| ◆ Packaging | packing case(B) | ||||
| Options | |||||
| ◇Voltage380V/415V | ◇Voltage 440V/480V | ◇Voltage 6.3kV/10.5KV/13.8KV | |||
| ◇Automatic Transfer Switch | ◇Alternator heater | ◇Engine Heater(water) | |||
| ◇Extemal fuel tank(1000L/1500L) | |||||

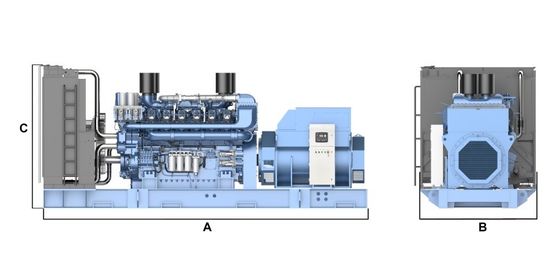

| Typical Enclosed Genset Dimensions | ||||||
| Genset Model | Prime Rating (kVA) |
Length A(mm) |
Width B(mm) |
Height C(mm) |
Wet Weight* (kg) |
Standard Fuel tank Capacity (L) |
| JW-WP2900B73 | 3000 | 7090 | 3000 | 3580 | 25400 | / |
| JW-WP2900C73 | 3000 | 15700 | 3500 | 5500 | 54000 | 2000 |
| *:Include coolant and oil. | ||||||
For detailed parameters, please consult me.
