1300kw 1625kva 1400kw Weichai Marine Genset 1500 Rpm Silent Diesel Generator Power Output

Name: 1300kw 1625kva 1400kw Weichai Marine Genset 1500 Rpm Silent Diesel Generator Power Output
Brand: Sichuan Jiweicheng Electric Power Equipment Co., Ltd.
SKU: 16M33
Price: 2,006.00 USD
Availability: InStock

Brand Name:	JIWEI
Model Number:	16M33
MOQ:	1
Price:	Negotiabce
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rated Voltage:

400V , 230V

Rated Current:

1040A-1280A

Speed:

1500RPM, 1800RPM

Frequency:

50/60hz

Starting System:

24V DC Electric Start, 12V DC Electric Start

Type:

Container Type, Open Frame, Mobile Type

Cooling System Type:

Water Cooling System

Warranty:

Other

Rated Power:

1300kw 1625kva 1400kw 1750kva 1500kw 1875kva 1600kw 2000kva

Engine:

16M33

Product Name:

1300kw 1625kva 1400kw 1750kva 1500kw 1875kva 1600kw 2000kva Weichai Diesel Generator Set

Color:

Customizable

Highlight:

1300kw weichai marine genset

1625kva diesel generator power output

1400kw 1500 rpm silent diesel generator

Product Description

1300kw 1625kva 1400kw 1750kva 1500kw 1875kva 1600kw 2000kva Weichai Generator Diesel Generator Set

Overview

Product characteristics

● Mature technology: beautiful design, relatively small volume under the same power, strong power.

● Low fuel consumption: the engine manufacturing technology is mature, and the fuel consumption treatment reaches the industry high standard.

● Electric injection control is reliable: it can make the engine output stronger power, suitable for various environments.

● High safety: such as 1600kW Weichai unit using Weichai autonomous electronic control ECU.

● Easy maintenance: there are observation Windows on both sides of the body, which is easy to replace the connecting rod and connecting rod tile.

● Good environmental adaptability: Reserve water heating inlet and outlet interface, good cold start performance in low temperature environment.

Land Based Genset-JW-WP1680
Gen-set specifications
Model				JW-WP1680
Standby Rating kVAkWe				1925/1540
Prime Rating kVAkWe				1750/1400
Voltage V				400/230
Frequency Hz				50
Power Factor				0.8(lagging)
No.of Phases				3
Fuelconsumption@25%/50%/75%(Lh)				99.8/185.3/264.0
Fuelconsumption@100%/110%(Lh)				360.7/401.5
Sound@1m (dB · (A))				Open≤103;Silence≤95
Ambient temp(C)				-10~45
Gen-set regulation cass				ISO8528-5 G2
Steady-state voltage deviation				≤±2.5%
Transient voltage deviation (100%sudden power decrease/increase)				≤+25%;≤-20%
Steady-state frequency band				≤1.5%
Transient frequency deviation from rated frequency (100%sudden power decrease/increase)				≤+12%;≤-10%

Standard Features
	◆ ECU	◆DC24 Electric starter			◆JW-WHC9510N
	◆Closed water-cooled	◆IP23			◆Htype insulation
	◆Air filter	◆Muffler			◆Circuit Breaker
	◆Startingbatteres	◆ with connective wires			◆ Radiato
	◆Oil Drain Valve	◆Forklift Groove			◆Shock Absorber
	◆PMG	◆Automatic Parallel system
	◆Color	Weichai blue(B,F)/beige canopy and black chassis(L/white(C)
	◆Packaging	Wound film packing

Options
	◇Line Voltage380V/415V		◇Line Voltage 440V/480V			◇Voltage 6.3kV/10.5kV /13.8kV
	◇Single Voltage 220V/230V		◇Automatic Transfer Switch			◆Automatic system
	◇Engine Heater(water)		◇Engine Heater(air inlet)			◇Alternator heater
	◇External fuel tank(1000L/1500L)		◇AREP

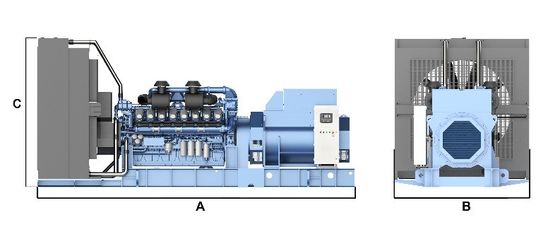

Typical Enclosed Genset Dimensions
Genset Model	Rated Power (kW)	Length A(mm)	Width B(mm)	Height C(mm)	Wet Weight* (kg)	Standard Fuel tank Capacity (L)
JW-WP1680B73	1400	6500	2750	3058	15600	/
JW-WP1680C73	1400	40#High Cube Container			30100	1000

For detailed parameters, please consult me.

We have cooperation with worldwide famous brands. For more specification,please contact us.

Our Advantages

Our OEM Partners

are from different brands. With our customized solutions consistently delivering satisfaction ,we have won an esteemed reputation.

FAQ

1.Q: What is your MOQ of this item?
A:1 Sets.

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.

Why choose Jiwei to buy a generator set:

First, environmental protection and fuel saving: The advantages of gasoline generator include: optimized performance, ‌ flexible control, ‌ reduce NOx emission, ‌ high precision control, low vibration, low noise, low maintenance cost; ‌

Second,Delivery Guarantee: 1.fast delivery time: 1-5 days after receiving the deposit, except for special models; 2.Jiwei Company has been established for 20 years, with rich pre-sales and after-sales service capabilities, strong supply capabilities, stable supplier resources and rich logistics resources;

Third, strict quality inspection and testing procedures: 1.each generator set has to go through a comprehensive test program, including 50% load, 75% load, 100% load, 110% load and all control and alarm, safety shutdown function inspection and certification.

Fourth, service guarantee 1.provide free technical support, drawing design; 2.warranty time :2 years or 2000 hours to the first arrival (delivery starts to calculate the time); 3.service response time: within 30 minutes (telephone response); 4.spare parts supply: common repair, maintenance spare parts supply (shipped in China); 5.warranty address: global warranty; Fifth,Customized Services: can be more customized products and LOGO according to your needs;

Sixth,Confidentiality we can sign quality assurance and confidentiality agreements with you, so that our cooperation is more stable;
