| Brand Name: | JIWEI |
| Model Number: | 12M33 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |

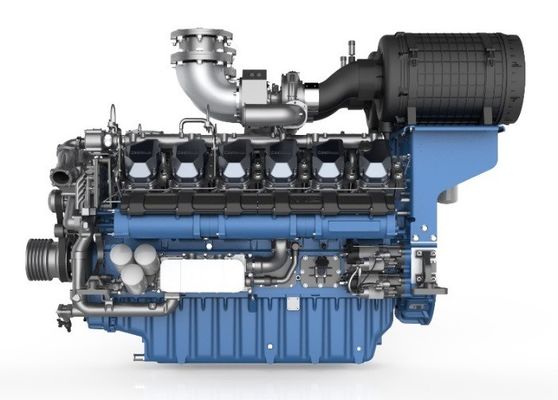

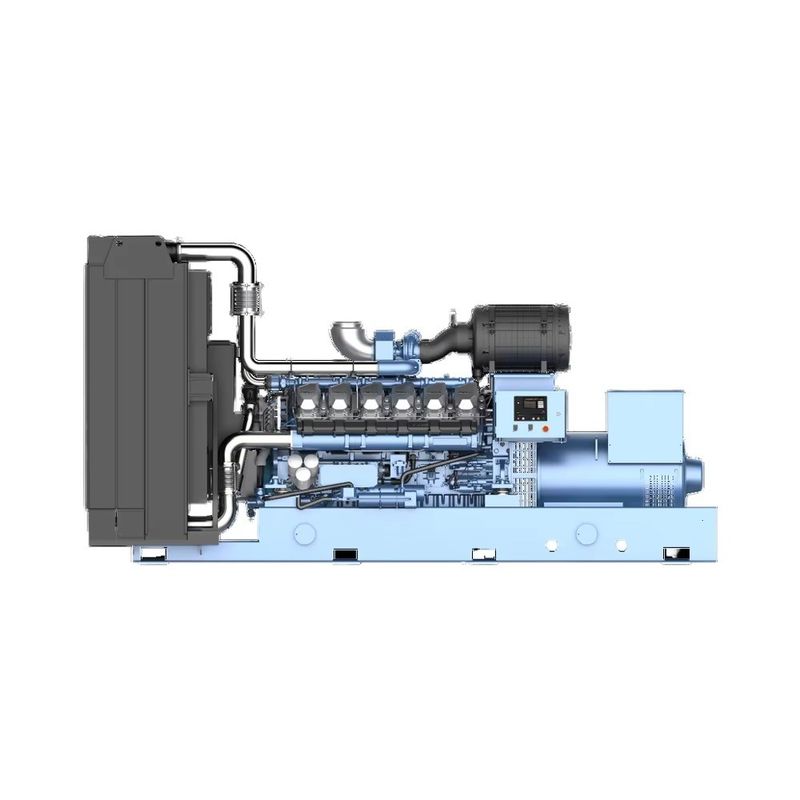

900kw 1000kva 1000kw 1250kva 1100kw 1375kva Fuel Saving Weichai Generator Diesel Generator Set
Product characteristics
● Excellent performance: mature technology, stable and reliable operation, can adapt to a variety of complex conditions, can run for more than 24 hours, suitable for industry, commerce, energy, transportation and other fields.
High efficiency and energy saving: Using high efficiency fuel injection technology and advanced turbocharging mechanism, high combustion efficiency, high energy utilization efficiency, low fuel consumption rate.
● Environmental protection and low noise: in line with international environmental standards, low emission level. At the same time, the noise soothing technology is used to effectively reduce the noise during operation.
● Advanced design: integral crankshaft box structure and modular design, making the unit light weight, small size, high efficiency, and easy to install, debug and maintenance.
● Easy maintenance: compact structure, easy operation, flexible maintenance, high degree of automation, can adjust the output voltage and frequency according to load changes, but also to achieve remote control.
Application field
● Industrial field: such as manufacturing, metallurgy, electronics, machinery and other industries, to provide stable power for production equipment.
● Commercial field: suitable for hotels, supermarkets, entertainment venues and other commercial buildings to ensure their normal operation.
● Energy field: It can be used for power supply in the development and utilization of energy resources such as oil fields, mines, wind power, and solar energy.
● Transportation: As an emergency backup power supply for airports, stations, subways and other transportation places, to ensure the safety of traffic operation.
| Land Based Genset-JW-WP1108 | ||||||
| Gen-set specifications | ||||||
| Model | JW-WP1108 | |||||
| Standby Rating kVAkWe | 1375/1100 | |||||
| Prime Rating kVA/kWe | 1250/1000 | |||||
| Voltage V | 400/230 | |||||
| Frequency Hz | 50 | |||||
| Power Factor | 0.8(lagging) | |||||
| No.of Phases | 3 | |||||
| Fuel consumption@25%/50%/75%(Lh)75%(Lh) | 81.8/128.1/188.6 | |||||
| Fuel consumption@100%/110%(Lh) | 250.9/278.3 | |||||
| Sound@1m (dB · (A)) | Open≤109;Silence ≤95 | |||||
| Ambient temp(℃) | -10~45 | |||||
| Gen-set regulation class | ISO 8528-5 G2 | |||||
| Steady-state voltage deviation | ≤±2.5% | |||||
| Transient voltage deviation(100%sudden power decrease/ncrease) | ≤+25%;≤20% | |||||
| Steady-state frequency band | ≤1.5% | |||||
| Transient frequency deviation from rated frequency(100%sudden power decrease/increase) |
≤+12%;≤10% | |||||
| Standard Features | ||||||

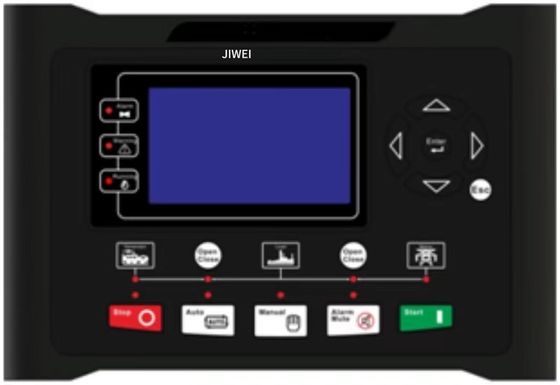

| ◆ Electronic governor | ◆DC24V Electric starter | ◆JW-WHC9320CAN | ||||
| ◆Closed water-cooled | ◆IP23 | ◆H type insulation | ||||
| ◆ Air filter | ◆Muffler | ◆Circuit Breaker | ||||
| ◆Startingbatteries | ◆with connective wires | ◆ Radiator | ||||
| ◆Oil Drain Valve | ◆Forklift Groove | ◆Shock Absorber | ||||
| ◆Color | Weichai blue(B,F)/beige canopy and black chassis (L)/white(C) | |||||

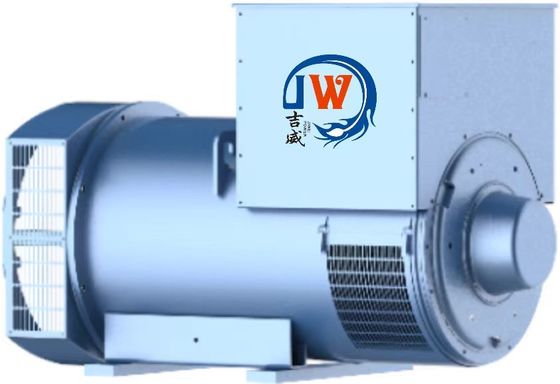

| ◆ Packaging | Wound film packing | ◆ PMG | ||||
| Options | ||||||
| OLine Voltage380V/415V | ◇Line Voltage 440V/480V | OVoltage 6.3kV/10.5kV/13.8kV | ||||
| ◇Single Voltage 220V/230V | ◇Automatic Transfer Switch | OAutomatic Paralel system | ||||
| ◇Engine Heater(water) | ◇Engine Heater(air inlet) | 〇Alternator heater | ||||
| OExtemal fuel tank (1000L1500L) | ◇AREP | |||||
| Typical Enclosed Genset Dimensions | ||||||
| Gnset Model | Rated Power (kW) |
Length A(mm) |
Width B(mm) |
Height C(mm) |
Wet Weight* (kg) |
Standard Fuel tank Capacity (L) |
| JW-WP1108B7 | 1000 | 4800 | 2200 | 2450 | 8200 | / |
| JW-WP1108C7 | 1000 | 20'Standard container | 11700 | 550 | ||
| *:Include coolantand oil. | ||||||
