| Brand Name: | JIWEI |
| Model Number: | WP13D |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |

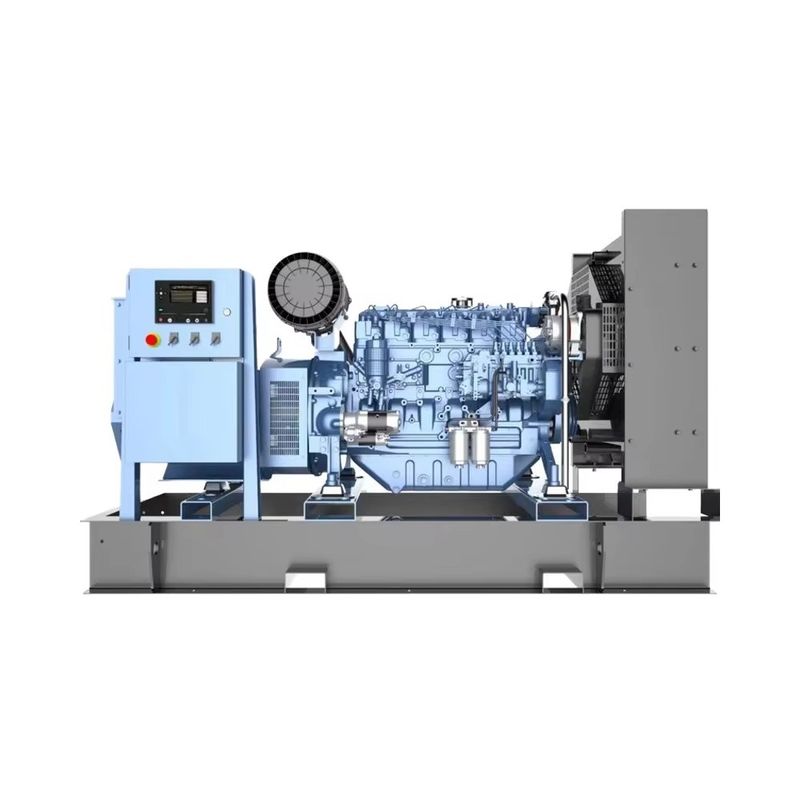

Quick Start 300kw 375kva 350kw 438kva 400kw 500kva Weichai Engine Diesel Generator Set
Product characteristics
● Excellent performance: stable and reliable operation, suitable for a variety of fields, with a high cost performance.
High efficiency and energy saving: Using high efficiency fuel injection technology and turbocharging mechanism, high combustion efficiency and high energy utilization efficiency.
● Environmental protection and low noise: in line with international environmental standards, low emission level, using noise mitigation technology, the noise is controlled in a low range.
● Advanced design: integrated crankshaft box structure and modular design technology, light weight, small volume, high efficiency.
● Easy maintenance: compact structure, easy operation, flexible maintenance, high degree of automation, can adjust the output voltage and frequency according to load changes, and can achieve remote control.
Application field
● Industrial field: such as manufacturing, metallurgy, electronics, machinery and other industries, to meet the power needs of different scale industrial sites.
● Commercial field: suitable for hotels, supermarkets, entertainment venues and other commercial buildings, to provide stable power support.
● Energy field: can be used in oil fields, mines, wind power, solar energy and other energy resources development and utilization.
● Transportation: It can be used as an emergency backup power supply for airports, railways, subways and other transportation places to ensure the safety of traffic operation.
| Land Based Genset-JW-WP385 | |||||
| Gen-set specifications | |||||
| Model | JW-WPG440*8 | ||||
| Standby Rating kVAkWe | 440/352 | ||||
| Prime Rating kVA/kWe | 400/320 | ||||
| Voltage V | 400/230 | ||||
| Frequency Hz | 50 | ||||
| Power Factor | 0.8(lagging) | ||||
| No.of Phases | 3 | ||||
| Fuel consumption@25%/50%/75%(Lh) | 22.2/41.3/60.6 | ||||
| Fuel consumption@100%/110%(Lh) | 82.1/91.2 | ||||
| Sound@1m(dB · (A)) | Open≤105;Silence ≤85 | ||||
| Ambient temp(℃) | -10~45 | ||||
| Gen-set regulation class | ISO8528-5 G2 | ||||
| Steady-state voltage deviation | ≤±2.5% | ||||
| Transient voltage deviation (100%sudden power decrease/increase) |
≤+25%;≤-20% | ||||
| Steady-state frequency band | ≤1.5% | ||||
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
≤+12%;≤-10% | ||||
| Standard Features | |||||
| ◆ Electronic governor | ◆DC24 Electric starter | ◆JW-WHC6120NC | |||
| ◆Closed water-cooled | ◆ IP23 | ◆H type insulation | |||
| ◆Air filter | ◆ Muffler | ◆Circuit Breaker | |||
| ◆Startingbatteries | ◆with connective wires | ◆ Radiator | |||
| ◆Oil Drain Valve | ◆Forklift Groove | ◆Shock Absorber | |||
| ◆Color | Weichai blue(B,F)/beige canopy and black chassis(L) | ||||
| ◆Packaging | Wound film packing | ||||
| Options | |||||
| ◇Voltage380V/415V | ◇Voltage 440V/480V | ◇Single Voltage 220V/230V | |||
| ◇Automatic Transfer Switch | ◇AutomaticParallel system | ◇PMG | |||
| ◇Engine Heater (water) | ◇Engine Heater(air inlet) | ◇Alternator heater | |||
| ◇External fuel tank(1000L/1500L) | |||||
