| Brand Name: | JIWEI |
| Model Number: | 12M33 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |

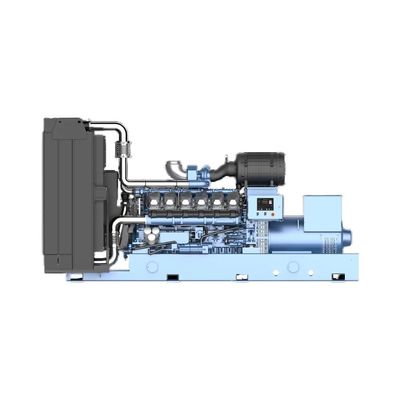

| Land Based Genset-JW-WP1240 | |||||
| Gen-set specifications | |||||
| Model | JW-WP1240 | ||||
| Standby Rating kVA/kWe | 1375/1100 | ||||
| Prime Rating kVA/kWe | 1250/1000 | ||||
| Voltage V | 400/230 | ||||
| Frequency Hz | 50 | ||||
| Power Factor | 0.8(lagging) | ||||
| No.of Phases | 3 | ||||
| Fuel consumption@25%/50%/75%(Lh)75%(Lh) | 76.4/128.0/188.5 | ||||
| Fuel consumption@100%/110%(Lh) | 263.1/292.4 | ||||
| Sound@1m(dB · (A)) | Opens101;Silence ≤95 | ||||
| Ambient temp(℃) | -10~45 | ||||
| Gen-set regulation class | ISO 8528-5G2 | ||||
| Steady-state voltage deviation | ≤±2.5% | ||||
| Translent voltage devlation(100%sudden power decrease/increase) | ≤+25%;≤-20% | ||||
| Steady-state frequency band | ≤1.5% | ||||
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
≤+12%;≤-10% | ||||
| Standard Features | |||||
| ◆ ECU | ◆DC24 Electric starter | ◆ JW-WHC9320CAN | |||
| ◆Closed water-cooled | ◆ IP23 | ◆H type insulation | |||
| ◆Air filter | ◆Muffler | ◆ Circuit Breaker | |||
| ◆Startingbatteries | ◆ with connective wires | ◆ Radiator | |||
| ◆Oil Drain Valve | ◆Forklift Groove | ◆Shock Absorber | |||
| ◆Color | Weichai blue (B,F)/beige canopy and black chassis (L)//white(C) | ||||
| ◆ Packaging | Wound film packing | ◆ PMG | |||
| Options | |||||
| ◇Line Voltage380V/415V | OLineVoltage 440V/480V | OVoltage 6.3kV/10.5kV/13.8kV | |||
| ◇ Single Voltage 220V/230V | OAutomatic Transfer Switch | OAutomatic Parallel system | |||
| ◇Engine Heater(water) | OEngine Heater(air inlet) | OAlternator heater | |||
| External fuel tank(1000L/1500L) | OAREP | ||||
![]()
![]()
![]()
![]()
