| Brand Name: | JIWEI |
| Model Number: | JW-TAD73 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |
121kw 150kva 149kw 188kva161kw 200kva 202kw 250kva Volvo engine diesel generator set
Product characteristics
● Power performance: The Volvo diesel generator engine has a high load capacity, equipped with a low resistance supercharger and a responsive fuel injection system, which can withstand high loads in a short time.
● Starting performance: With fast and reliable cold starting performance, the engine is also equipped with a heater, which can be easily started in low temperature environment.
● Operation stability: the engine runs smoothly, the noise is low, and the optimized design reduces the vibration and noise.
● Environmental performance: less exhaust emissions, in line with relevant environmental requirements, low operating costs, and low fuel consumption.
● Easy maintenance: Volvo provides parts and service support worldwide, making maintenance easy.
MODEL: JW-V206400V|1500rpm| 50Hz
| GENERATING SET DATA | |
| Relatedrange of voltage setting | ≥±5% |
| Steady-state voltage deviation | ≤±1% |
| Transient voltage deviation (100 %suddenpowerdecrease) | ≤+25% |
| Transient voltage deviation (suddenpowerincrease) | ≤-20% |
| Voltagerecovery time (100 % suddenpowerdecrease) | ≤6S |
| Voltagerecovery time (suddenpower increase) | ≤6S |
| Related range of frequency setting | 0-5% adjustable |
| Steady-state frequency band | ≤1.5% |
| Transient frequency deviation (100 %suddenpowerdecrease) | ≤+12% |
| Transient frequency deviation (sudden powerincrease) | ≤-10% |
| Frequencyrecovery time (100 %suddenpowerdecrease) | ≤5S |
| Frequencyrecovery time (suddenpower increase) | ≤5S |
| STANDARD FEATURES | ||

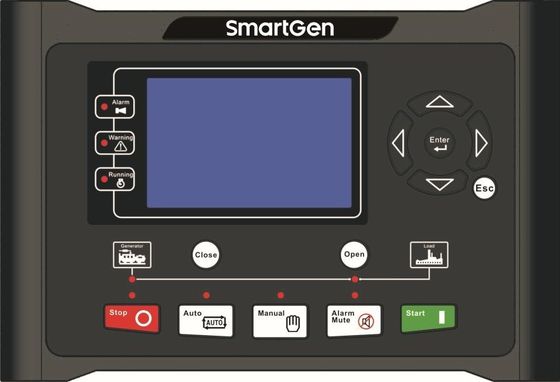

| Standard auto controlsystem | Exhaust system (includinguntilmuffler) | Documents |
|
Oil drainvalve |
Starting batteries (maintenance-free& watering-free) with connective wires |
Special coolant |
| Base fuel tank | MCCB | |
|
MODEL: JW-V206 |
400V| 1500rpm|50Hz | ||
| OPTIONS | |||
| Daily fuel tank | Rainproof type | Remote controlpanel | |
| Alternatorheater | Soundproof type | Paralleling system | |
| Spareparts | Trailer type | Switchbox | |
| Automatictransferswitch | |||
| DIMENSIONS & WEIGHT |

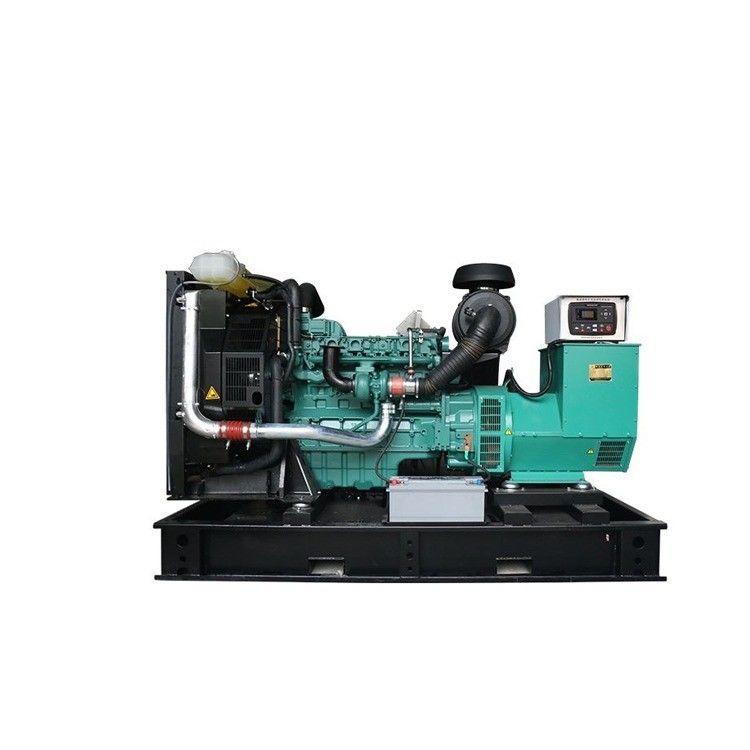

| Standard Configuration (open typewith basefueltank) |
| OverallDimensions: 2660×1050×1610mm |
| Weight:1820kg |

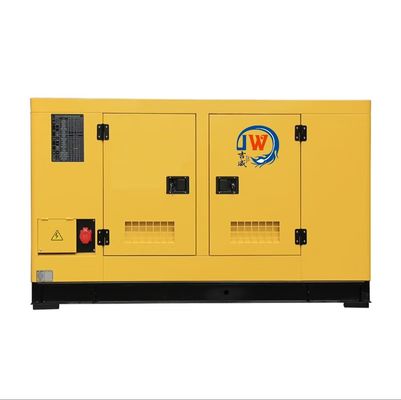

| Soundproof Type |
| OverallDimensions: 3590×1310×2050mm |
| Weight: 2700kg |
