| Brand Name: | JIWEI |
| Model Number: | JW-TAD84 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |
Cost-effective 202kw 250kva 260kw 325kva Volvo engine diesel generator set
Performance characteristics
• Power performance: Using Volvo's advanced diesel engine technology, such as the 260kW TAD941GE engine, the power output is robust and stable to meet the power needs of a variety of industrial and commercial scenarios.
• Economic performance: with a low fuel consumption rate, such as 260kW unit fuel consumption rate of about 202-204g/kWh, can effectively reduce operating costs.
• Environmental performance: Emissions meet EU II or III and EPA environmental standards, using advanced combustion technology and post-treatment systems to reduce harmful gas emissions.
• Safety performance: equipped with a complete protection system, including high water temperature, low oil pressure, over-speed, charging failure, low battery voltage protection functions, to ensure the safe operation of the unit.
• Control performance: A variety of communication modes can be selected, such as RS-232C, RS-485, Modem telephone network connection, etc., to achieve remote control, telemetry, remote communication functions, convenient remote monitoring and management.
Application field
• Industrial field: factories, mines, construction sites, etc., to provide power guarantee for production equipment, construction machinery, etc., to ensure smooth production and construction.
• Commercial field: hotels, shopping malls, office buildings, etc., to provide backup power when the mains power failure, to ensure the normal development of commercial activities.
• Medical field: Hospital operating rooms, intensive care units, medical equipment, etc., need a reliable power supply, Volvo diesel generator sets can be used as emergency power to ensure the normal operation of medical work.
• Data center: Provides stable power for servers, cooling systems and other equipment in the data center to ensure the safety and normal processing of data.
| GENERATING SET DATA | |
| Relatedrange of voltage setting | ≥±5% |
| Steady-state voltage deviation | ≤±1% |
| Transient voltage deviation (100 %suddenpowerdecrease) | ≤+20% |
| Transient voltage deviation (suddenpowerincrease) | ≤-15% |
| Voltagerecovery time (100 % suddenpowerdecrease) | ≤4S |
| Voltagerecovery time (suddenpower increase) | ≤4S |
| Related range of frequency setting | 0-5% adjustable |
| Steady-state frequency band | ≤0.5% |
| Transient frequency deviation (100 %suddenpowerdecrease) | ≤+10% |
| Transient frequency deviation (sudden powerincrease) | ≤-7% |
| Frequencyrecovery time (100 %suddenpowerdecrease) | ≤3S |
| Frequencyrecovery time (suddenpower increase) | ≤3S |
| STANDARD FEATURES | ||
| Standard auto controlsystem | Exhaust system (includinguntilmuffler) | Documents |
|
Oil drainvalve |
Starting batteries (maintenance-free& watering-free) with connective wires |
Special coolant |
| Base fuel tank | MCCB | |
|
MODEL: JW-V275 |
400V| 1500rpm|50Hz | ||
| OPTIONS | |||
| Daily fuel tank | Rainproof type | Remote controlpanel | |
| Alternatorheater | Soundproof type | Paralleling system | |
| Spareparts | Trailer type | Switchbox | |
| Automatictransferswitch | |||
| DIMENSIONS & WEIGHT |

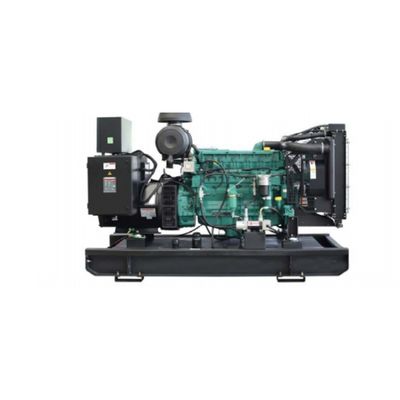

| Standard Configuration (open typewith basefueltank) |
| OverallDimensions: 2770×1050×1610mm |
| Weight: 2100kg |

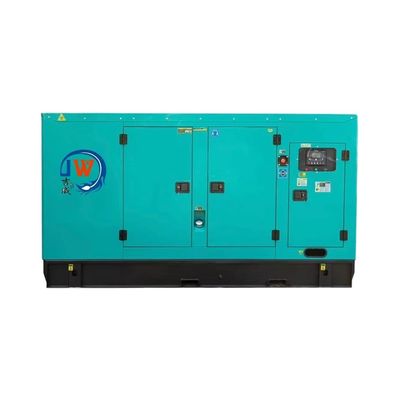

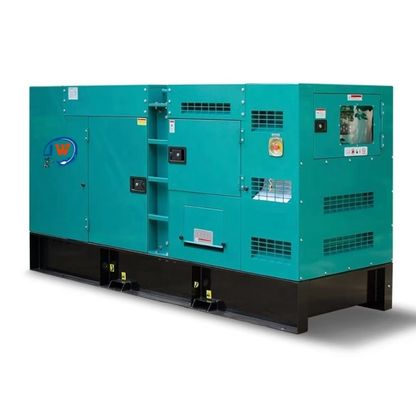

| Soundproof Type |
| OverallDimensions: 3590×1310×2050mm |
| Weight: 3000kg |
