| Brand Name: | JIWEI |
| Model Number: | SYG302TAD97 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |

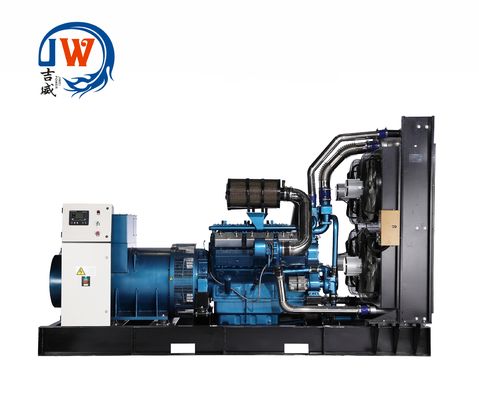

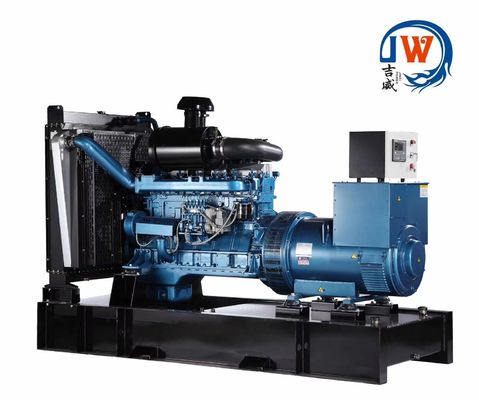

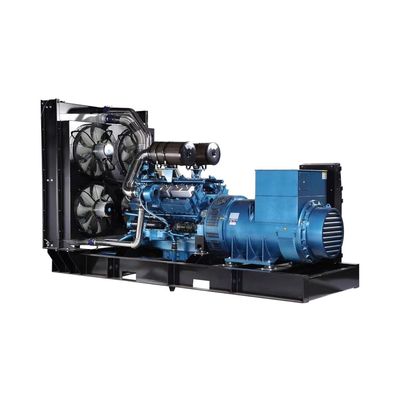

800kw 1000kva Shanghai research power generator diesel generator set

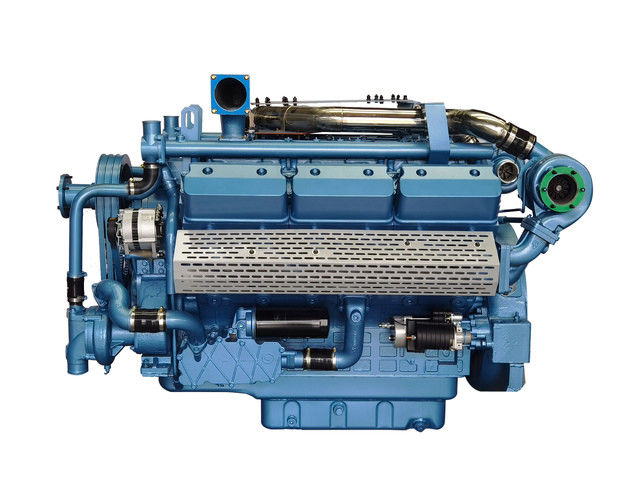

Technical features:
Advanced diesel engine technology, low fuel consumption; In line with relevant national standards, the use of supercharging, intercooling, electronic speed regulation and other technologies to reduce emissions; The overall design is compact, the diesel engine and the generator are connected by elastic coupling; Selection of high-quality materials and processes, equipped with overload, short circuit and other protection devices; The control panel can realize electrical parameter monitoring and other functions, and intelligent control system can be selected.
| 型式 Type |
直喷,直立,四冲程,水冷 inline,direct injection,4- stroke,water cooled |
| 进气方式 Aspiration |
增压中冷 turbocharged with intercooler |
| 气缸数量Cylinder quantity | 12 |
| 气缸直径Cylinder diameter(mm) | 138 |
| 气缸套型式 Cylinder cover type |
湿式Wet |
| 冲程Piston stroke(mm) | 168 |
| 排量Total displacement(L) | 30.2 |
| 压缩比Compression ratio | 14 |
| 调速率Speed regulating rate(%) | 0~5 |
| 标定转速Rotate speed(r/min) | 1500 |
| 标定功率Rater power(KW) | 880 |
| 最大功率Maximum power(KW) | 968 |
| 标定工况燃油消耗率(g/kw.h) Minimum fuel consumption rate |
203 |
| 最大烟度(FSN) Exhaust evolution degree |
≤2FSU |
| 机油容量Oil volume(L) | 65 |
| 机油消耗率(g/kw.h) Oil consumption |
≤0.7 |
| 发火次序(从自由端起) gnition order(start from free end) |
1-12-5-8-3-10-6-7-2-11-4-9 |
| 飞轮旋转方向 Rotating direction of bent axel |
逆时针(面向飞轮端) anticlockwise(face to flywheel end) |
| 排放标准Emission standard | TIERIⅡ |
| 噪音(DB)Noise | ≤121 |
| 净重(kg)Net weight | 2300±50 |
| 外形尺寸(mm) Size of diesel engine |
1650×1750×1600 |
飞轮壳&飞轮 Flywheel/Flywheel casing |
SAE 0#/18" |
