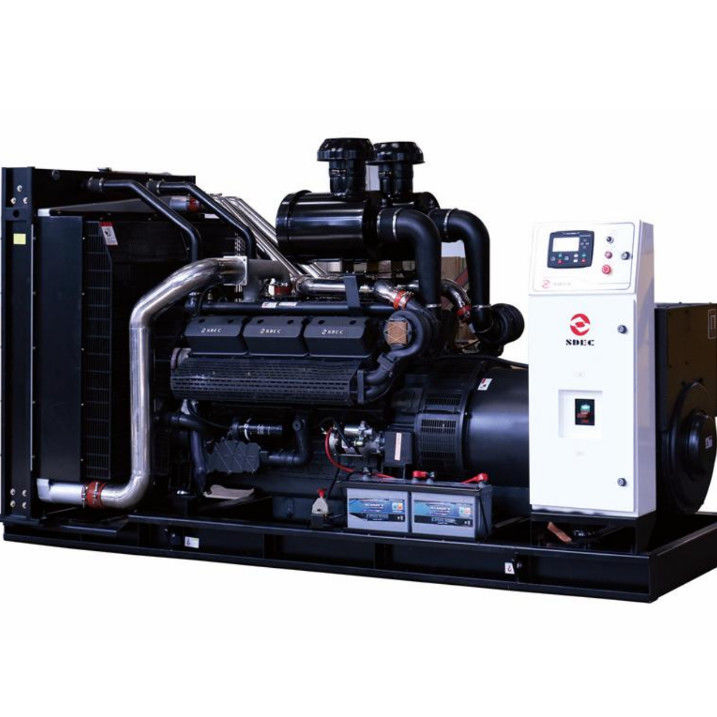

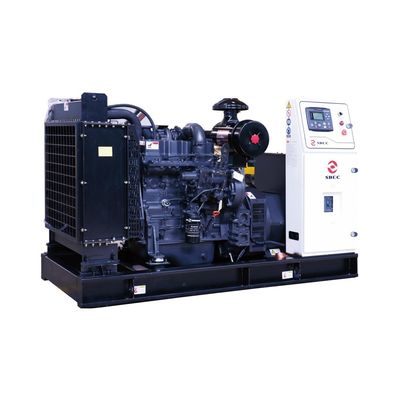

Genset SDEC Diesel Generator 64kw 80kva High Efficiency Diesel Generator

Name: Genset SDEC Diesel Generator 64kw 80kva High Efficiency Diesel Generator
Brand: Sichuan Jiweicheng Electric Power Equipment Co., Ltd.
SKU: SC4H115D2
Price: 2,006.00 USD
Availability: InStock

Brand Name:	JIWEI
Model Number:	SC4H115D2
MOQ:	1
Price:	negotiable
Delivery Time:	30 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Sichuan, China

Certification:

Speed:

1500RPM, 1800RPM

Frequency:

50/60hz

Starting System:

Auto Start, Remote Start, 24V DC Electric Start

Type:

Container Type, Open Frame, Mobile Type

Cooling System Type:

Water Cooling System

Rated Voltage:

400/230V,220V,220/380V,220V / 380V,380/220V

Output Type:

AC Three Phase,AC Single Phase

Rated Power:

64kw 80kva

Alternator:

Marathon,Stamford Or Equal,China Stamford,STAMFORD/COPY STAMFORD,XINNUO/Leroysomer/Stanford/Marathon/Faraday Are Optional

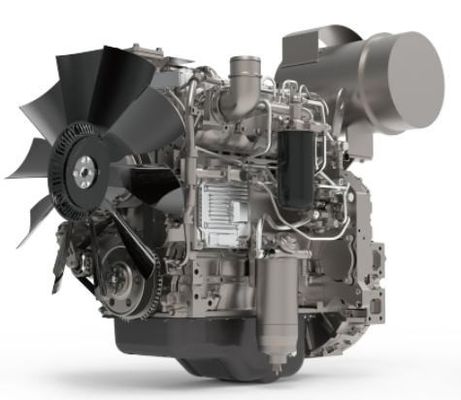

Engine:

SDEC SC4H115D2

Color:

Customizable

Product Name:

64kw 80kva SDEC Diesel Generator Set

Highlight:

Genset SDEC Diesel Generator

SDEC Diesel Generator 64kw

80kva high efficiency diesel generator

Product Description

SDEC Genset 64kw 80kva High Degree Of Intelligence Diesel Generator Set

Overview

Application Fields

Industrial Field
- Widely used in industrial and mining enterprises.
- Provides stable power for production equipment.
- Applicable in scenarios such as mining and factory production.
Commercial Field
- Utilized in commercial buildings (shopping malls, hotels, office buildings).
- Acts as backup power during outages to ensure basic operations.
Public Utilities
- Essential for hospitals, schools, communication base stations, and other public facilities.
- Offers reliable power support in emergencies.

Advantages

Advanced Technology
- Incorporates electronic control high-pressure common rail fuel injection systems.
- Reduces fuel consumption and harmful gas emissions.
- Improves combustion efficiency.
Easy Maintenance
- Optimized design of lubrication and cooling systems.
- Overall brushless alternator design minimizes external pipes and parts.
- Lowers maintenance costs and difficulties.
High Degree of Intelligence
- Equipped with an automatic controller for real-time monitoring of operating status.
- Protection functions for high water temperature, low oil pressure, overcurrent, and overload.
- Capable of remote monitoring and fault diagnosis.

SDEC GEN-SETS DATASHEET RATED64kW
Gen-set specifications
Model					JW-D64S3K
Standby Rating kVA/kWe					88/70
Prime Rating kVAkWe					80/64
Voltage V					400/230
Frequency Hz					50
Power Factor					0.8(lagging)
No.of Phases					3
Fuel consumption@25%/50%175%(L/h)75%(L/h)					6.1/10.3/15.2
Fuel consumption@100%/110%(L/h)					20.2/22.1
Sound@1m(dB · (A))					Open≤96;Silence ≤90
Emission level					Non-Road China ll
Ambient temp(℃)					5～45
Gen-set regulation class					ISO 8528-5 G2
Steady-state voltage deviation					≤±2.5%
Transient voltage deviation (100%sudden power decrease/increase)					≤+25%;≤-20%
Steady-state frequency band					≤1.5%
Gen-set regulation class					≤+12%;≤-10%

Standard
	◆Electronic governor		◆DC24 Electric starter			◆JW-SDEC6110N
	◆Closed water-cooled		◆IP22			◆H type insulation
	◆Air filter		◆Metal bowl shock absorbers			◆Circuit Breaker
	◆Startingbatteries+connective wires+ Negative switch		◆Radiator			◆Charger
	◆Oil Drain plugs		◆Base fuel tank and low noise forklift hole			◆Random files
	◆Color:Gray-black(open type)/White(low noise)
	◆Packaging:Wound film packing

Options
	◇ Line Voltage380V/415V	◇ Line Voltage 440V/480V		◇ Voltage 6.3kV/10.5kV/13.8kV
	◇ Single Voltage 220V/230V	◇ Automatic Transfer Switch		◇ Automatic Parallel system
	◇ Engine Heater(water/fuel)	◇ Oil heating		◇ Alternator heater
	◇ External fuel tank(1000L)	◇ AREP		◇ PMG
	◇ Muffler	◇ Black smoke purification device		◇ Cloud monitoring

FAQ

1.Q: What is your MOQ of this item?
A:1 Sets.

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.
