| Brand Name: | JIWEI |
| Model Number: | BF6L913 |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T, |
Cost-Effective 88kw/110kva To 110kw/183kva Deutz Engine Diesel Generator Set

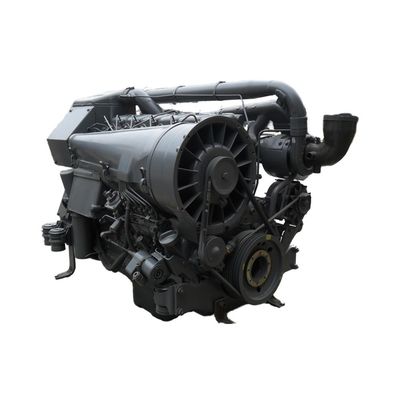

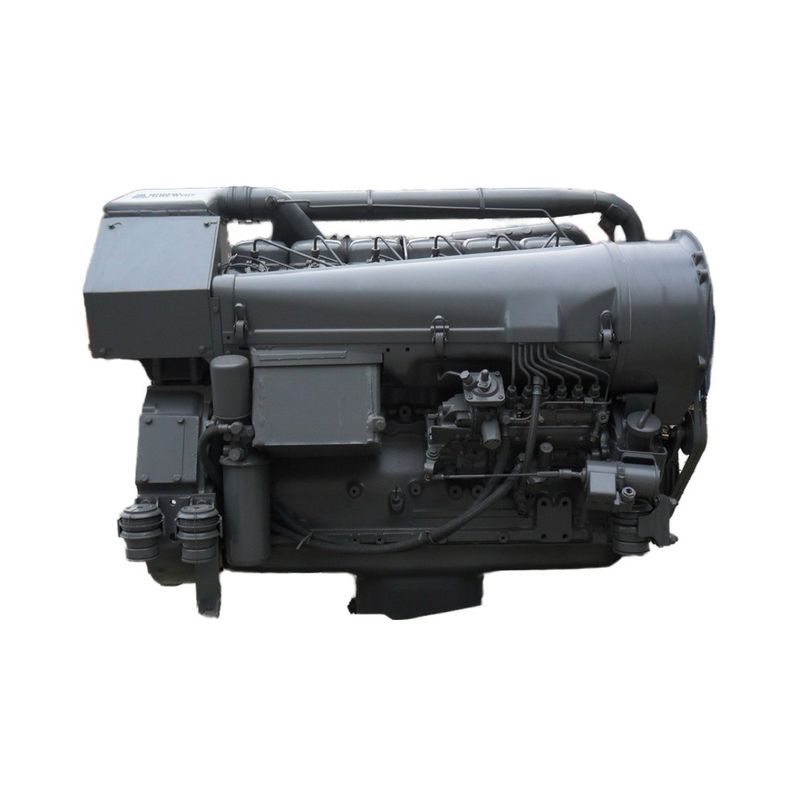

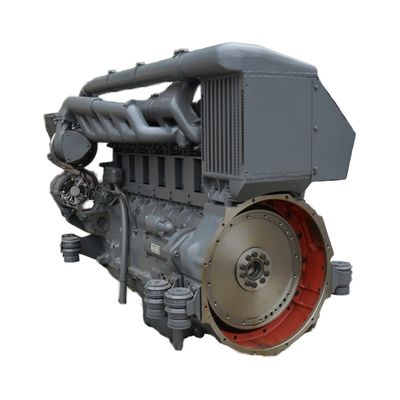

88kW Deutz diesel generator set
• Technical features: air-cooled design, smooth work, low noise, small vibration, low temperature starting performance; Less exhaust gas emission, smoke less than 1 Bosch unit, low fuel consumption; Small and delicate appearance; Compact structure design, no water pump, water pipe, water tank and other components, easy maintenance; Strong environmental adaptability, can work reliably in the temperature range of -40℃ ~ +50℃.

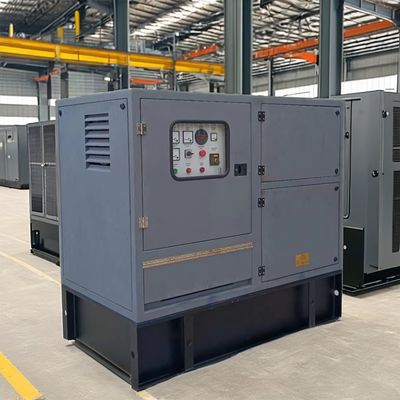

110kW Deutz diesel generator set
• Configuration example: The engine is usually a six-cylinder engine from Weichai Deutz, such as the 2011 model with a rated power of 124kW and turbocharged.
• Technical features: Inherited the low fuel consumption, high reliability and durability of Deutz engines. Low vibration noise, more stable operation, less noise pollution to the use of the environment. Using high-quality materials and advanced manufacturing processes, the overall structure is strong and can adapt to a variety of complex working environments.
| 风冷柴油机数据单 | DEUTZ | ||||||||||
| *柴油机功率数值符合IS03046 和 DIN6271. | |||||||||||
| 发电机组参考数据 | |||||||||||
| 机型 | BF6L913 | ||||||||||
| 类型 | 六缸直列 风冷 增压 |
||||||||||
| 燃烧系统 | 直喷 | T(Nm) | |||||||||
| 压缩比 | 18:1 | 500 480 460 |
|||||||||
| 旋转方向(面对风扇端) | 顺时针 | ||||||||||
| 排量(L) | 6.128 | ||||||||||
| 缸径x行程(mm) | 102×125 | ||||||||||
| 持续功率(kW)/转速1500rpm 1800rpm |
88 | ||||||||||
| 106 | |||||||||||
| 最大功率(kW)/转速1500rpm 1800rpm |
92 | ||||||||||
| 112 | |||||||||||
| 额定油100%(g/kW.h) 1500rpm 1800rpm |
228 | ||||||||||
| 228 | |||||||||||
| 重量(kg) | 485 | ||||||||||
| 柴油机尺寸(mm) | A | B | C | D | E | F | |||||
| SAE 8-10 |
SAE 10-11.5 |
||||||||||
| BF6L913(中置) | 1020 | 776 | 821 | 363 | 278 | 105 | 88 | ||||
| 风冷柴油机数据单 DEUTZ | ||||||||||
| *柴油机功率数值符合ISO3046 和 DIN6271. | ||||||||||
| 发电机组参考数据 | (kW) 160 |
|||||||||
| 机型 | BF6L913C | 140 | ||||||||
| 类型 | 六缸直列 风冷 增压中冷 |
120 100 80 60 |
||||||||
| 燃烧系统 | 直喷 | 40 | ||||||||
| 压缩比 | 18:1 | 20 | ||||||||
| 旋转方向(面对风扇端) | 顺时针 | |||||||||
| 排量(L) | 6.128 | |||||||||
| 缸径×行程(mm) | 102×125 | |||||||||
| 持续功率(kW)/转速 | 1500rpm 1800rpm |
114 130 |
(gkWh) | |||||||
| 最大功率(kW)/转速 | 1500rpm 1800rpm |
120 136 |
250 240 |
|||||||
| 额定油100%(g/kW.h) | 1500rpm 1800rpm |
224 224 |
230 220 210 |
|||||||
| 重量(kg) | 510 | 200 | ||||||||
| 柴油机尺寸(mm) | A | B | C | D | E | F | ||||
| SAE 8-10 |
SAE 10-115 |
|||||||||
| BF6L913C | 1035 | 714 | 863 | 363 | 278 | 105 | 88 | |||
