| Brand Name: | JIWEI |
| Model Number: | F4L |
| MOQ: | 1 |
| Price: | Negotiabce |
| Payment Terms: | T/T |

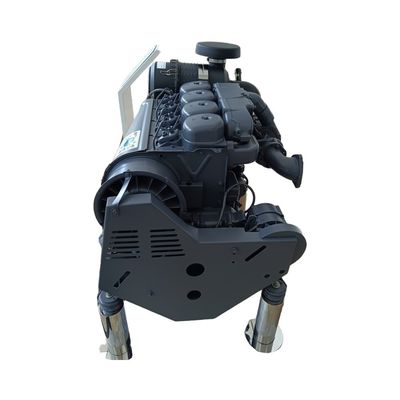

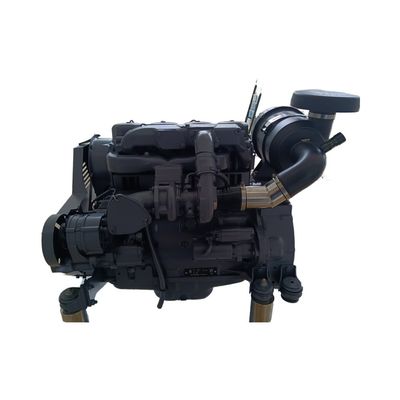

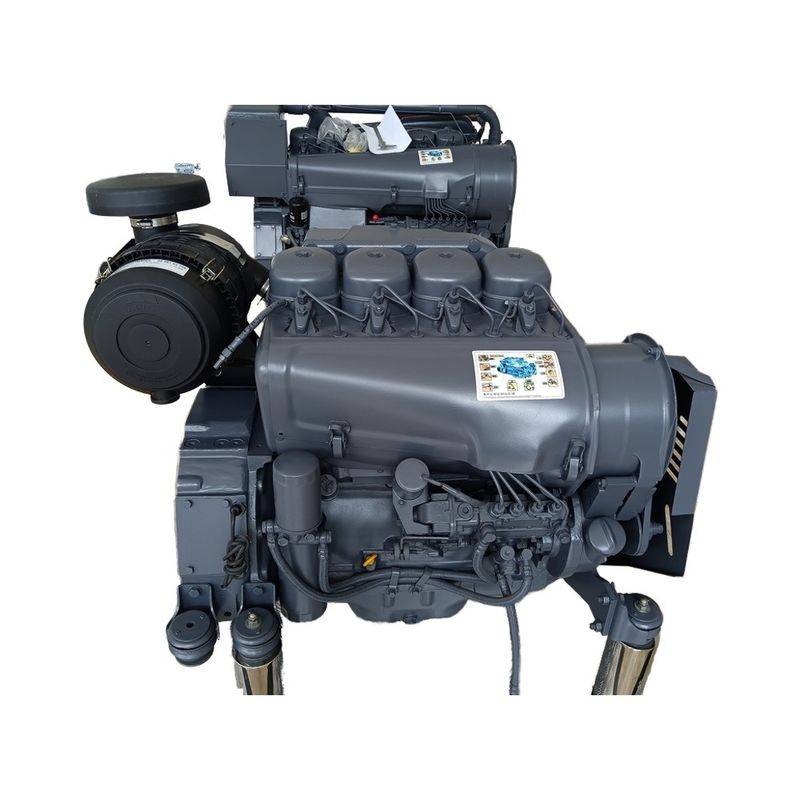

Quick start with low noise 40kva/44kva/50kva Deutz engine diesel generator set
Performance characteristics
● High reliability: Deutz, as the world's first internal combustion engine manufacturer, has mature technology and exquisite manufacturing technology, and its diesel generator sets are reliable in performance and stable in operation.
● Compact structure: compact design, small size, light weight, easy to install and transport, occupy small space, suitable for a variety of application scenarios.
● Low fuel consumption: The optimized combustion process makes the fuel utilization rate high, reduces the continuous load operation cost, and has a good fuel economy.
● Easy maintenance: reasonable structure design, easy disassembly and maintenance of each component, and sufficient supply of accessories, easy maintenance operation, can effectively reduce downtime.
● Strong environmental adaptability: air cooling or water cooling options, adapt to different environmental temperature conditions, in addition, but also has a good altitude adaptability and low temperature start-up performance.
● Low noise operation: optimized design of shock absorber, matching supercharger and low-speed cooling fan, etc., effectively reduce the noise of unit operation.
Application field
● Backup power supply: Often used in high-rise buildings, commercial centers, hospitals, data centers and other important buildings, to provide emergency power protection when the mains power failure.
● Industrial field: It can be used in factories, mines, oil fields and other places to provide power support for production equipment, lighting, etc.
● Engineering construction: in construction sites, road construction, bridge construction and other projects, as a temporary power supply to meet the electricity demand of construction equipment.
● Other fields: It can also be used in communication base stations, agricultural irrigation, ships, military and other fields to provide reliable power supply.
| 风冷柴油机数据单 | DEUTZ | ||||||||||
| *柴油机功率数值符合ISO3046 和 DIN6271. | |||||||||||
| 发电机组参考数据 | |||||||||||
| 机型 | F4L912 | ||||||||||
| 类型 | 四缸直列 风冷 自然进气 |
||||||||||
| 燃烧系统 | 直喷 | ||||||||||
| 压缩比 | 17:1 | ||||||||||
| 旋转方向(面对风扇端) | 顺时针 | ||||||||||
| 排量(L) | 3.77 | ||||||||||
| 缸径×行程(mm) | 100×120 | ||||||||||
| 持续功率(kW)/转速1500rpm 1800rpm |
32 | ||||||||||
| 38 | |||||||||||
| 最大功率(kW)/转速1500rpm 1800rpm |
35 | ||||||||||
| 42 | |||||||||||
| 额定油100%(g/kWh) 1500rpm 1800rpm |
228 | ||||||||||
| 228 | |||||||||||
| 重量(kg) | 300 | ||||||||||
| 柴油机尺寸(mm) | A | B | C | D | E | F | |||||
| SAE 8-10 |
SAE 10-11.5 |
||||||||||
| F4L912 | 725 | 679 | 821 | 330 | 287 | 105 | 88 | ||||
| 风冷柴油机数据单 DEUTZ | |||||||
| * 柴 油 机 功 率 数 值 符 合ISO3046 和 DIN6271. | |||||||
| 发电机组参考数据 | |||||||
| 机型 | F4L912T | ||||||
| 类型 | 四缸直列 风冷 增压 |
||||||
| 燃烧系统 | 直喷 | ||||||
| 压缩比 | 17:1 | ||||||
| 旋转方向(面对风扇端) | 顺时针 | ||||||
| 排量(L) | 3.77 | ||||||
| 缸径×行程(mm) | 100×120 | ||||||
| 持续功率(kW)/转速1500rpm 1800rpm |
41 | ||||||
| 48 | |||||||
| 最大功率(kW)/转速1500rpm 1800rpm |
45 | ||||||
| 52 | |||||||
| 额定油100%(g/kWh) 1500rpm 1800rpm |
220 | ||||||
| 217 | |||||||
| 重量(kg) | 310 | ||||||
| 柴油机尺寸(mm) | A | B | C | D | F | ||
| SAE 8-10 |
SAE 10-11.5 |
||||||
| F4L912T | 725 | 700 | 800 | 330 | 105 | 88 | |
| 风冷柴油机数据单 DEUTZ | ||||||
| * 柴 油 机 功 率 数 值 符 合ISO3046 和 DIN6271. | ||||||
| 发电机组参考数据 | ||||||
| 机型 | F4L912T | |||||
| 类型 | 四缸直列 风冷 增压 |
|||||
| 燃烧系统 | 直喷 | |||||
| 压缩比 | 17:1 | |||||
| 旋转方向(面对风扇端) | 顺时针 | |||||
| 排量(L) | 3.77 | |||||
| 缸径×行程(mm) | 100×120 | |||||
| 持续功率(kW)/转速1500rpm 1800rpm |
41 | |||||
| 48 | ||||||
| 最大功率(kW)/转速1500rpm 1800rpm |
45 | |||||
| 52 | ||||||
| 额定油100%(g/kWh) 1500rpm 1800rpm |
220 | |||||
| 217 | ||||||
| 重量(kg) | 310 | |||||
| 柴油机尺寸(mm) | A | B | C | D | F | |
| SAE 8-10 |
SAE 10-11.5 |
|||||
| F4L912T | 725 | 700 | 800 | 330 | 105 | 88 |
