Silent Diesel Generator Set
Created with Pixso. 3kw - 15kw Air Cooled Portable Dg Set Two Cylinder Four Stroke Silent Diesel Generator

3kw - 15kw Air Cooled Portable Dg Set Two Cylinder Four Stroke Silent Diesel Generator

Brand Name: JIWEI
Model Number: JW-AWT 3-15kw silent
MOQ: 1
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ce
Rated Voltage:
110V/220V/230V/380V/400V/440V,120 To 440V
Frequency:
50/60HZ
Speed:
3600rpm,3000/3600RPM,1500/1800
Rated Current:
5A-30A
Rated Power:
3kw-15kw
Output Type:
AC Single Phase,DC,AC 3 Phase,Other
Color:
Customizable
Engine Type:
Two-Cylinder Four-Stroke,Air-cooled Diesel Engine,ECU
Starting System:
Manual Start, Remote Start, Electric Start
Function:
Provide Electric Power
Fuel Tank Capacity:
10-25L,According To Customers' Requirement
Alternator Type:
Brush Alternator With AVR Or Brushless With AVR,Three Phase Alternator
Product:
3kw-15kw Air-Cooled Diesel Generator
Highlight:

3kw soundproof diesel generator set

,

15kw portable dg set

,

two cylinder diesel generator Four Stroke

Product Description

3kw-15kw Air-Cooled Two-Cylinder Four-Stroke Silent Diesel Generator



Overview



Silent diesel generators are specifically designed to minimize noise output, making them ideal for environments that require quiet operation. Below are the key features and applications of silent diesel generators.

Features

  1. Low Noise Design

    • Uses soundproof materials and specially designed silencers to significantly reduce operational noise.
  2. High Efficiency

    • Generally exhibits high fuel efficiency, providing stable power output over extended periods.
  3. Durability

    • Built with a robust diesel engine structure, suitable for long-running and heavy-load conditions.
  4. Portability

    • Many models are designed to be mobile, allowing for easy relocation and use in various settings.
  5. Environmental Protection

    • Complies with modern environmental standards, reducing emissions and ensuring eco-friendliness.

Applications

  1. Backup Power Supply

    • Acts as an emergency power source during outages, ensuring continuity for critical operations such as hospitals and data centers.
  2. Outdoor Activities

    • Supplies reliable power for events such as weddings, concerts, and other outdoor gatherings.
  3. Construction Sites

    • Provides electricity to construction sites lacking access to the electrical grid, powering tools and site facilities.
  4. Remote Areas

    • Delivers power for research stations, mining operations, and other activities in isolated locations.

Silent diesel generators are versatile and essential in maintaining power in sensitive and varied environments.



Specification





frequency Hz 50 /60 50 /60 50 /60 50 /60 50 /60 50 /60
Rated power KW 2.8 4.5 5 6 8 9
Maximum power KW 3 5.5 6 7 9 10
Rated voltage V 220 220 220 220 220 220
Power factor Cos 0 1 1 1 1 1 1
Engine type   178F 186F 188F 192F 1100FE 1105FE
Overall dimensions (L * W * H) mm 890*520*640 890*520*640 890*520*640 890*520*640 1100*650*735 1100*650*735
Net weight kg 130 140 150 160 190 195
Noise level dB(A) 70 70 70 70 70 70
Engine form   Single cylinder, air-cooled, four-stroke
Starting mode   electrical starting electrical starting electrical starting electrical starting electrical starting electrical starting
Fuel type   Дизель dieselo (summer) -10 (winter) -35) (саммер)-10 (уинтер)-35) (дизель extremely cold icon
Lubricating oil type   15W-40
Lubricating oil capacity L 1.1 1.65 1.7 1.75 1.8 1.8
Tank capacity L 12.5 12.5 12.5 12.5 12.5 12.5
PRICE USD 495 505 520 600 790 950
ADD+Equipower USD   50 50 50 50 50
ADD+ATS USD 75 75 75 75 75 75

frequency Hz 50 /60 50 /60 50 /60
Rated power KW 10 11 15
Maximum power KW 11 12 16
Rated voltage V 220 220 220
Power factor Cos 0 1 1 1
Engine type   2V88 2V92 2V95
Overall dimensions (L * W * H) mm 1100*650*735 1100*650*735 935*675*975mm
Net weight kg 215 260 269
Noise level dB(A) 85 85 90
Engine form   Twin-cylinder, air-cooled, four-stroke
Starting mode   electrical starting electrical starting electrical starting
Fuel type   Дизель dieselo (summer) -10 (winter) -35) (саммер)-10 (уинтер)-35) (дизель extremely cold icon
Lubricating oil type   15W-40
Lubricating oil capacity L 3.4 3.5 3.5
Tank capacity L 25 25 25
PRICE USD 1415 1650 1820
ADD+Equipower USD 60 60 60
ADD+ATS USD 90 90 90

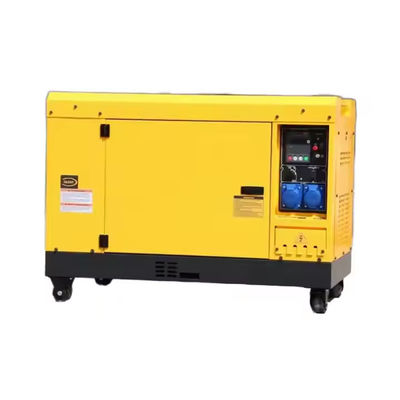

3kw - 15kw Air Cooled Portable Dg Set Two Cylinder Four Stroke Silent Diesel Generator 0

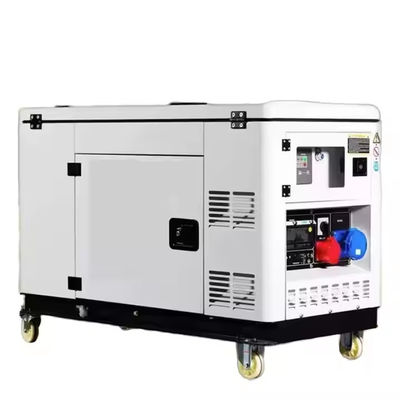

3kw - 15kw Air Cooled Portable Dg Set Two Cylinder Four Stroke Silent Diesel Generator 1

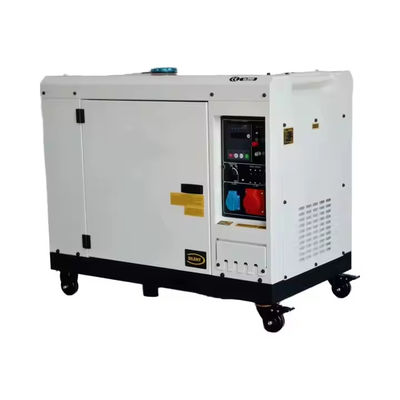

3kw - 15kw Air Cooled Portable Dg Set Two Cylinder Four Stroke Silent Diesel Generator 2

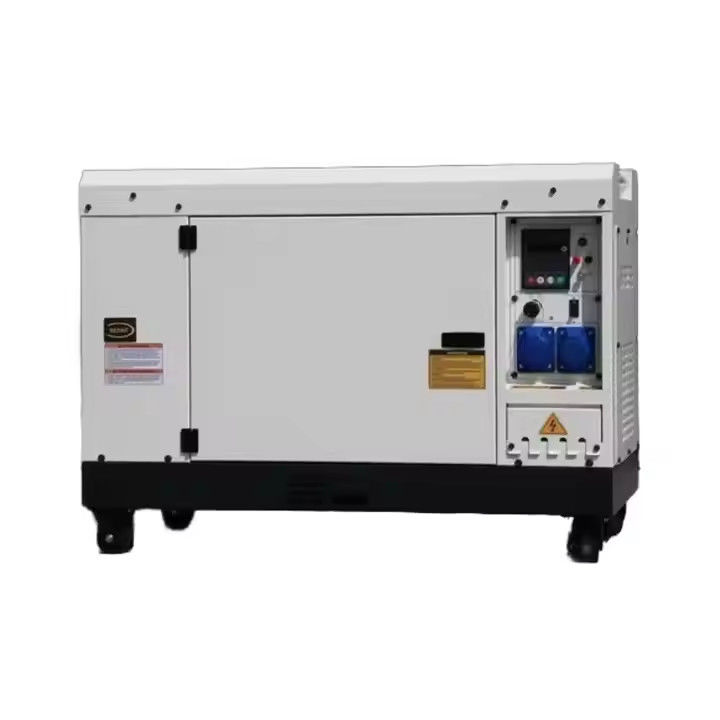

3kw - 15kw Air Cooled Portable Dg Set Two Cylinder Four Stroke Silent Diesel Generator 3



FAQ



1.Q: What is your MOQ of this item?
A:1 Set2.

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.
