| Brand Name: | JIWEI |
| Model Number: | JW-WP6 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |

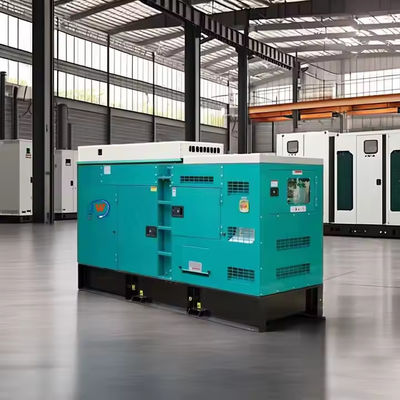

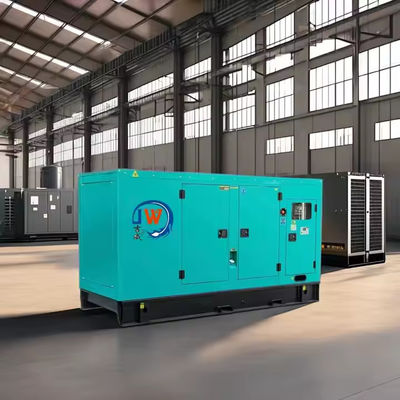

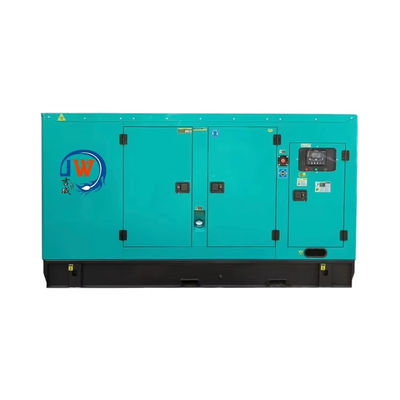

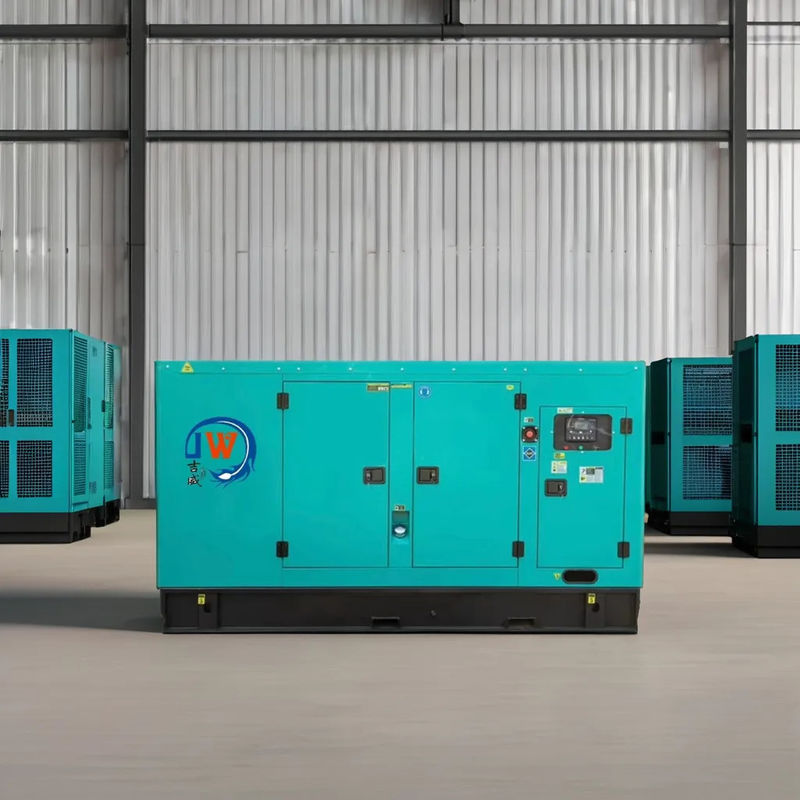

120kw 150kva 70 DB Super Noise Reduction Silent Diesel Generator
Overview
Peculiarities of Silent Diesel Generators:
Applications of Silent Diesel Generators:
Specification
Gen-set specifications |
|
Model |
JW-WP152 |
Standby Rating kVA/kWe |
165/132 |
Prime Rating kVA/kWe |
150/120 |
Voltage V |
400/230 |
Frequency Hz |
50 |
Power Factor |
0.8(lagging) |
No. of Phases |
3 |
Fuel consumption@25%/ 50% / 75%(L/h) |
9/16.5/25 |
Fuel consumption@100% / 110%(L/h) |
32/35 |
Sound@1m(dB·(A)) |
Open≤105 dB(A); Silence ≤85 dB(A) |
Ambient temp(℃) |
-10～45 |
Gen-set regulation class |
ISO8528-5 G2 |
Steady-state voltage deviation |
≤±2.5% |
Transient voltage deviation (100%sudden power decrease/increase) |
≤+25% ；≤-20% |
Steady-state frequency band |
≤1.5% |
Transient frequency deviation from rated frequency (100%sudden power decrease/increase) |
≤+12%；≤-10% |
Standard Features |
|||
♦ Electronic governor |
♦DC24 Electric starter |
♦JW WHC6120NC |
|
♦ Closed water-cooled |
♦ IP23 |
♦H type insulation |
|
♦ Air filter |
♦ Muffler |
♦ Circuit Breaker |
|
♦Starting batteries |
♦ with connective wires |
♦ Radiator |
|
♦Oil Drain Valve |
♦Forklift Groove |
♦Shock Absorber |
|
♦ Color |
Weichai blue (B, F)/beige canopy and gray chassis (L) |
||
♦ Packaging |
Wound film packing |
||
Options |
|||
◇Voltage380V/415V |
◇Voltage 440V/480V |
◇Single Voltage 220V/230V |
|
◇Automatic Transfer Switch |
◇Automatic Parallel system |
◇PMG |
|
◇Engine Heater (water) |
◇Engine Heater (air inlet) |
◇Alternator heater |
|
◇External fuel tank(1000L/1500L) |
|||
FAQ
1.Q: What is your MOQ of this item?
A:1 Set2.
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.
