3600RPM 120kva Soundless Diesel Generator Silent Box High Power 100kw 3 Phase Generator

Name: 3600RPM 120kva Soundless Diesel Generator Silent Box High Power 100kw 3 Phase Generator
Brand: Sichuan Jiweicheng Electric Power Equipment Co., Ltd.
SKU: JW-WP4.6
Price: 2,006.00 USD
Availability: InStock

Brand Name:	JIWEI
Model Number:	JW-WP4.6
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rated Voltage:

110V/220V/230V/380V/400V/440V,120 To 440V

Frequency:

50/60HZ

Speed:

3600rpm,3000/3600RPM,1500/1800,750n/min,4000

Rated Current:

180A

Rated Power:

100kw，120kva

Output Type:

AC Single Phase,DC,AC 3 Phase,Other

Color:

Customizable

Engine Type:

WEICHAI，WP4.6,Air-cooled Diesel Engine,ECU

Starting System:

Recoil Start+Electric Start

Function:

Provide Electric Power

Fuel Tank Capacity:

100L-3000L，According To Customers' Requirement

Alternator Type:

Brush Alternator With AVR Or Brushless With AVR,Three Phase Alternator

Product Name:

100kw 120kva Silent Diesel Generator

Highlight:

3600RPM Generator Silent Box

120kva soundless diesel generator

High Power 100kw 3 phase generator

Product Description

100kw 120kva Soundless High Power Silent Diesel Generator Set

Overview

Silent diesel generators are designed to minimize noise output, making them suitable for noise-sensitive environments like hospitals, schools, residential areas, and offices.

Key Features

Low Noise Design: Incorporates soundproof materials and specialized mufflers to substantially decrease operational noise.
High Efficiency: Offers excellent fuel efficiency and consistent power output.
Durability: Built with a robust diesel engine, making it ideal for prolonged operation and heavy loads.
Portability: Select models are designed for mobility, facilitating use in various locations.
Environmental Protection: Modern versions adhere to environmental regulations, reducing emissions.

Applications

Backup Power Supply: Acts as an emergency power source during power outages.
Outdoor Activities: Powers outdoor events like weddings and concerts.
Construction Sites: Supplies electricity to locations without grid access.
Remote Areas: Provides power to research stations and mining operations in isolated locations.

Specification

Gen-set specifications
Model	JW-WP138
Standby Rating kVA/kWe	137.5/110
Prime Rating kVA/kWe	125/100
Voltage V	400/230
Frequency Hz	50
Power Factor	0.8(lagging)
No. of Phases	3
Fuel consumption@25%/ 50% / 75%(L/h)	8.07/14.13/20.17
Fuel consumption@100% / 110%(L/h)	28.11/30.59
Sound@1m(dB·(A))	Open≤105 dB(A); Silence ≤85 dB(A)
Ambient temp(℃)	-10～45
Gen-set regulation class	ISO8528-5 G2
Steady-state voltage deviation	≤±2.5%;≤±5%
Transient voltage deviation (100%sudden power decrease/increase)	+25%；-20%
Steady-state frequency band	≤1.5%
Transient frequency deviation from rated frequency (100%sudden power decrease/increase)	+12%；-10%

Standard Features
	♦ Electronic governor	♦DC24 Electric starter	♦JW-WHC6120CAN
	♦ Closed water-cooled	♦ IP23	♦H type insulation
	♦ Air filter	♦ Muffler	♦ Circuit Breaker
	♦Startingbatteries	♦ with connective wires	♦ Radiator
	♦Oil Drain Valve	♦Forklift Groove	♦Shock Absorber
	♦ Color	Weichai blue (B,F)/beige canopy and black chassis (L)
	♦ Packaging	packing case(B,F)

Options
	◇Voltage380V/415V	◇Voltage 440V/480V	◇External fuel tank(1000L/1500L)
	◇Single Voltage 220V/230V	◇Automatic Transfer Switch	◇Alternator heater
	◇Engine Heater (water)	◇PMG/AREP

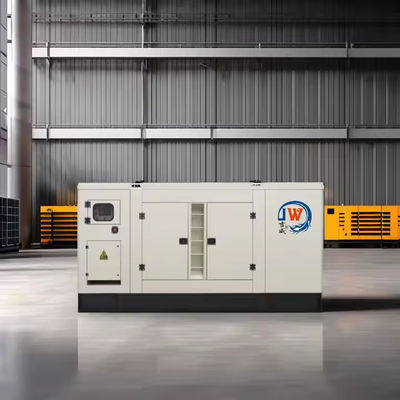

3600RPM 120kva Soundless Diesel Generator Silent Box High Power 100kw 3 Phase Generator 0

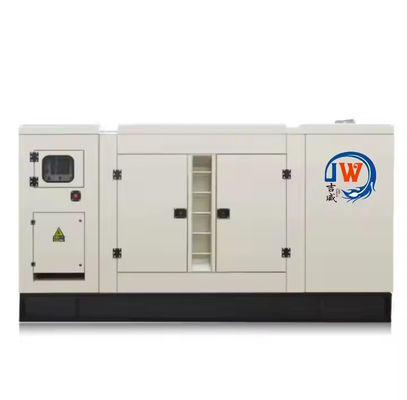

3600RPM 120kva Soundless Diesel Generator Silent Box High Power 100kw 3 Phase Generator 1

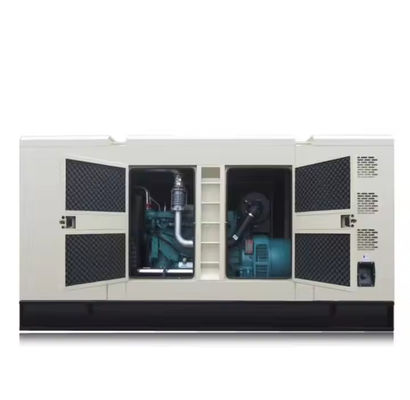

3600RPM 120kva Soundless Diesel Generator Silent Box High Power 100kw 3 Phase Generator 2

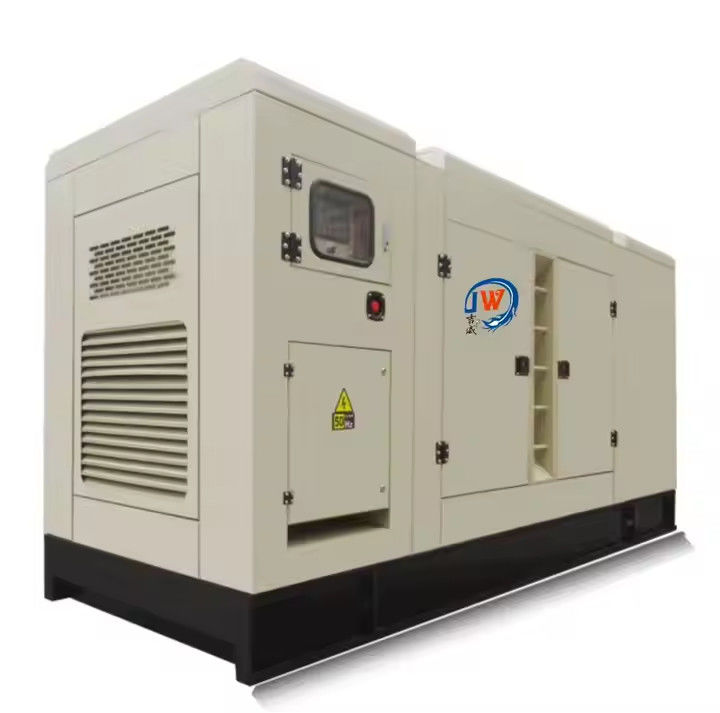

3600RPM 120kva Soundless Diesel Generator Silent Box High Power 100kw 3 Phase Generator 3

FAQ

1.Q: What is your MOQ of this item?
A:1 Set2.

2.Q: What is the lead time?

A:7 working days after received the 30%T/T deposit.

3.Q: Is it all right to make customer's own brand name?

A:We can be your OEM manufacture with your authorization of brand.

4.Q: Where is your Loading Port?

A:Shanghai or others.

5.Q: What are your payment terms?

A:30% TT as deposit,70% TT before Shipment.

6.Q: What is your company's available production capacity?

A:100 Sets per month.

7.Q:What's the warranty time of diesel generators?

A:12 months or 1000 working hours, whichever comes first.
