Silent Diesel Generator Set
Created with Pixso. 3 Phase 50kw 62.5kva Generator Silent Box 80kw Silent Generator Set 100kva

3 Phase 50kw 62.5kva Generator Silent Box 80kw Silent Generator Set 100kva

Brand Name: JIWEI
Model Number: JW-WP264
MOQ: 1
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ce
Rated Voltage:
110V/220V/230V/380V/400V/440V,120 To 440V
Frequency:
50/60HZ
Speed:
3600rpm,3000/3600RPM,1500/1800,750n/min,4000
Rated Current:
80A-150A
Rated Power:
50kw 62.5kva 80kw 100kva
Output Type:
AC Single Phase,DC,AC 3 Phase,Other
Color:
Customizable
Engine Type:
WEICHAI,WP4.1,Air-cooled Diesel Engine,ECU
Starting System:
Recoil Start+Electric Start
Function:
Provide Electric Power
Fuel Tank Capacity:
100L-3000L,According To Customers' Requirement
Alternator Type:
Brush Alternator With AVR Or Brushless With AVR,Three Phase Alternator
Product Name:
Silent 50kw 62.5kva 80kw 100kva Diesel Generator
Highlight:

3 Phase 50kw Generator Silent Box

,

62.5kva Generator Silent Box

,

80kw Silent generator set 100kva

Product Description

50kw 62.5kva 80kw 100kva Silent Generator Super Silent Diesel Generator





Overview



Silent diesel generator is a diesel power generation equipment designed to reduce noise output, which is widely used in places requiring a quiet environment, such as hospitals, schools, residential areas, offices and so on. Here are some of the key features and applications of silent diesel generators:

peculiarity
1. Low noise design: Through the use of soundproof materials and specially designed silencers, the noise during operation is significantly reduced.
2. High efficiency: Diesel generators usually have high fuel efficiency and can provide stable power output.
3. Durability: The diesel engine structure is strong, suitable for long running and heavy load use.
4. Portability: Some silent diesel generators are designed to be mobile and easy to use in different locations.
5. Environmental protection: Modern silent diesel generators usually meet environmental standards and reduce emissions.



Apply


1. Backup power supply: Provide emergency power in case of power interruption.
2. Outdoor activities: Provide power for outdoor weddings, concerts and other activities.
3. Construction sites: Provide electricity at sites that are not covered by the grid.
4. Remote areas: Provide power for research stations, mining operations, etc., in remote areas.



Specification



Gen-set specifications
Model
JW-WP66
Standby Rating kVA/kWe
68.5/55
Prime Rating kVA/kWe
62.5/50
Voltage V
400/230
Frequency Hz
50
Power Factor
0.8(lagging)
No. of Phases
3
Fuel consumption@25%/ 50% / 75%(L/h)
4.34/7.12/9.46
Fuel consumption@100% / 110%(L/h)
13/14.13
Sound@1m(dB·(A))
Open≤105 dB(A); Silence ≤85 dB(A)
Ambient temp(℃)
-10~45
Gen-set regulation class
ISO8528-5 G2
Steady-state voltage deviation
≤±2.5%;≤±5%
Transient voltage deviation (100%sudden power decrease/increase)
+25%;-20%
Steady-state frequency band
≤1.5%
Transient frequency deviation from rated frequency (100%sudden power decrease/increase)
+12%;-10%
Standard Features

♦ Electronic governor
♦DC24 Electric starter
♦JW-WHC6120NC
♦ Closed water-cooled
♦ IP23
♦H type insulation
♦ Air filter
♦ Muffler
♦ Circuit Breaker
♦Startingbatteries
♦ with connective wires
♦ Radiator
♦Oil Drain Valve
♦Forklift Groove
♦Shock Absorber
♦ Color
Weichai blue (B,F)/beige canopy and black chassis (L)
♦ Packaging
packing case(B,F)
Options

◇Voltage380V/415V
◇Voltage 440V/480V
◇External fuel tank(1000L/1500L)

◇Single Voltage 220V/230V
◇Automatic Transfer Switch
◇Alternator heater

◇Engine Heater (water)
◇PMG/AREP

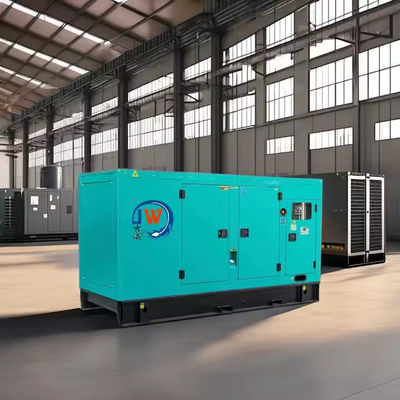

3 Phase 50kw 62.5kva Generator Silent Box 80kw Silent Generator Set 100kva 0

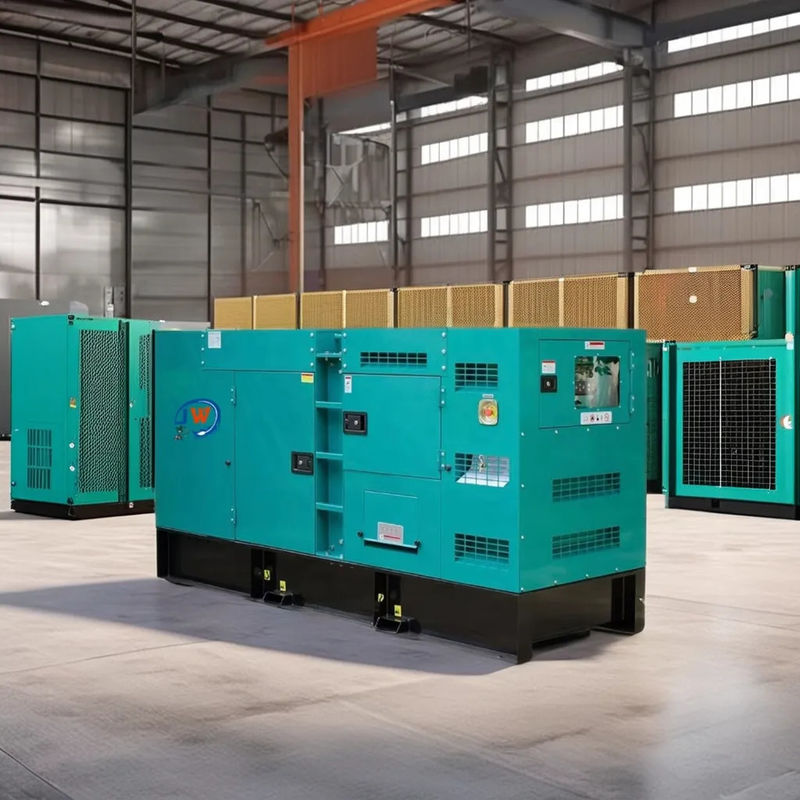

3 Phase 50kw 62.5kva Generator Silent Box 80kw Silent Generator Set 100kva 1

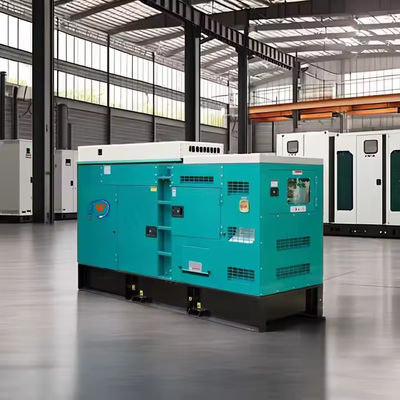

3 Phase 50kw 62.5kva Generator Silent Box 80kw Silent Generator Set 100kva 2

3 Phase 50kw 62.5kva Generator Silent Box 80kw Silent Generator Set 100kva 3



FAQ



1.Q: What is your MOQ of this item?
A:1 Set2.

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.
