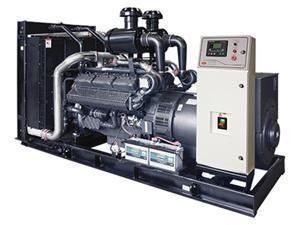

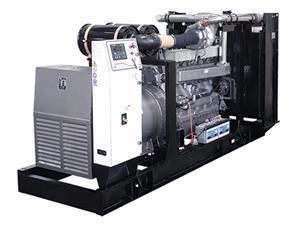

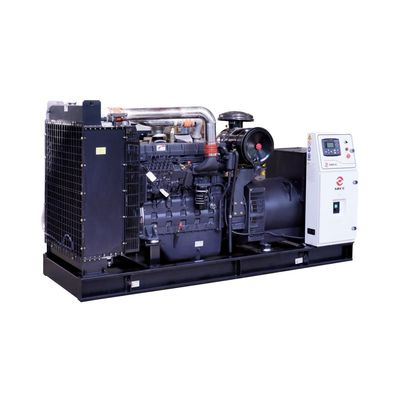

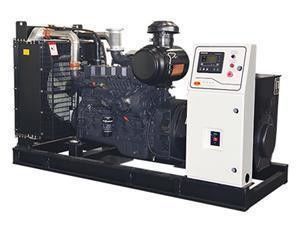

SDEC Engine 200kw 250kva Uncompromising Quality Diesel Generator Set
Overview
Uncompromising Quality: We maintain rigorous control over our production process, ensuring our diesel generator sets meet the highest domestic and international standards, backed by multiple authoritative certifications.
Personalized Support: Our dedicated service team provides end-to-end support, from consultation to after-sales, including program design, equipment selection, installation, commissioning, and usage guidance to meet your unique needs.
Proven Expertise: With 18 years of experience in the diesel generator set industry, we've built a wealth of knowledge and continue to innovate, invest in R&D, and strive to become a industry leader.
Worry-Free Ownership: Our comprehensive global warranty and after-sales service system, supported by multiple outlets and a skilled, responsive team, ensures your equipment operates smoothly and efficiently, with minimal downtime.
| SDEC GEN-SETS DATASHEET RATED 200kW | ||||||
| Gen-set specifications | ||||||
| Model | JW-D200SK | |||||
| Standby Rating kVA/kWe | 275/220 | |||||
| Prime Rating kVAkWe | 250/200 | |||||
| Voltage V | 400/230 | |||||
| Frequency Hz | 50 | |||||
| Power Factor | 0.8(lagging) | |||||
| No.of Phases | 3 | |||||
| Fuel consumption@25%/50%175%(L/h)75%(L/h) | 14.7/27.3/40.8 | |||||
| Fuel consumption@100%/110%(L/h) | 54.1/59.6 | |||||
| Sound@1m(dB · (A)) | Open≤105;Silence ≤90 | |||||
| Emission level | Non-Road China ll | |||||
| Ambient temp(℃) | 5～45 | |||||
| Gen-set regulation class | ISO 8528-5 G2 | |||||
| Steady-state voltage deviation | ≤±2.5% | |||||
| Transient voltage deviation (100%sudden power decrease/increase) | ≤+25%;≤-20% | |||||
| Steady-state frequency band | ≤1.5% | |||||
| Gen-set regulation class | ≤+12%;≤-10% | |||||
| Standard | ||||||
| ◆Electronic governor | ◆DC24 Electric starter | ◆JW-SDEC6110N | ||||
| ◆Closed water-cooled | ◆IP22 | ◆H type insulation | ||||
| ◆Air filter | ◆Metal bowl shock absorbers | ◆Circuit Breaker | ||||
| ◆Startingbatteries+connective wires+ Negative switch |
◆Radiator | ◆Charger | ||||
| ◆Oil Drain plugs | ◆Base fuel tank and low noise forklift hole |
◆Random files | ||||
| ◆Color:Gray-black(open type)/White(low noise) | ||||||
| ◆Packaging:Wound film packing | ||||||
| Options | ||||||
| ◇ Line Voltage380V/415V | ◇ Line Voltage 440V/480V |
◇ Voltage 6.3kV/10.5kV/13.8kV |
||||
◇ Single Voltage 220V/230V |
◇ Automatic Transfer Switch |
◇ Automatic Parallel system |
||||
◇ Engine Heater(water/fuel) |
◇ Oil heating |
◇ Alternator heater |
||||
◇ External fuel tank(1000L) |
◇ AREP |
◇ PMG |
||||
| ◇ Muffler | ◇ Black smoke purification device |
◇ Cloud monitoring |
||||
